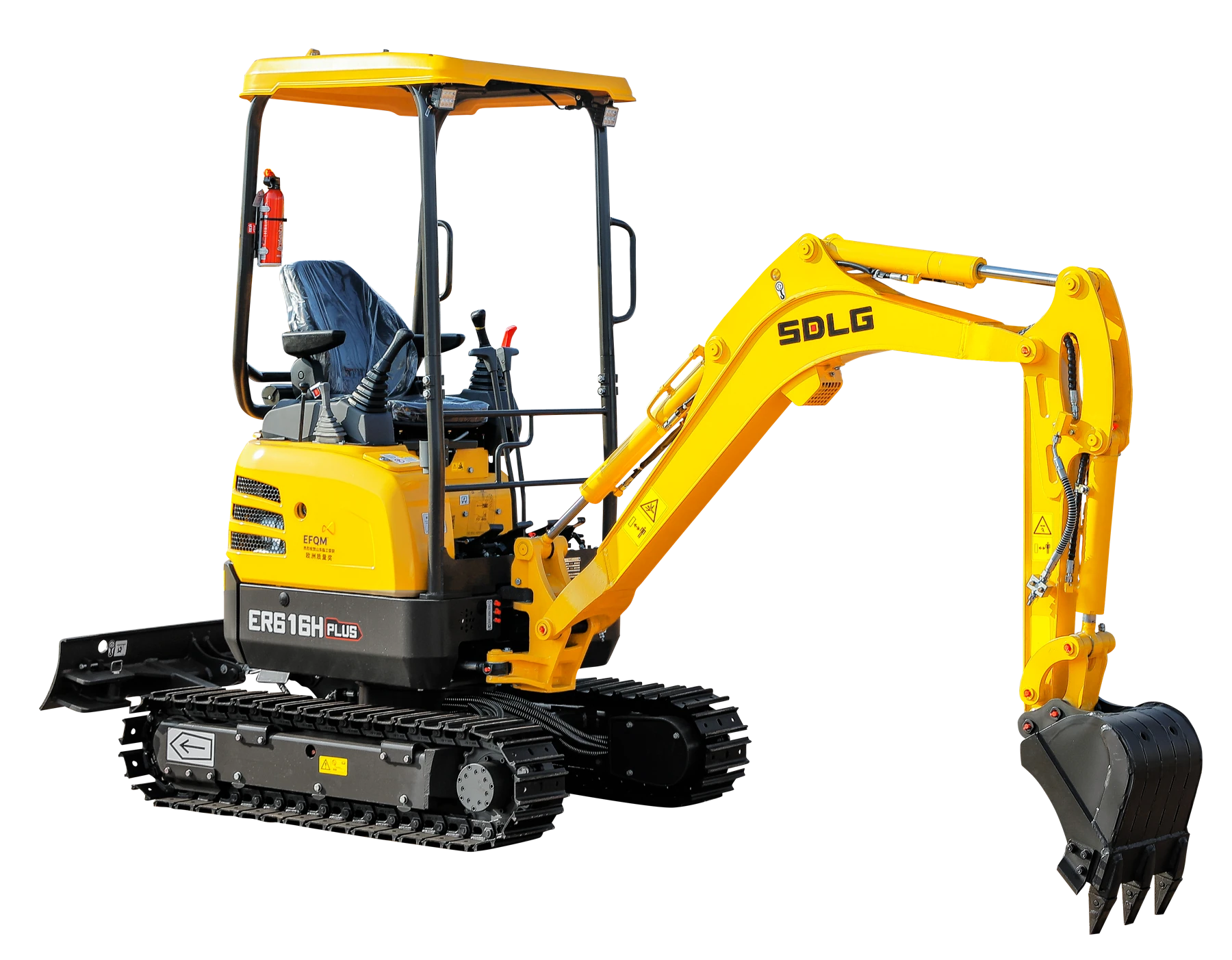

SDLG ER616H Mini Excavator, product view 01

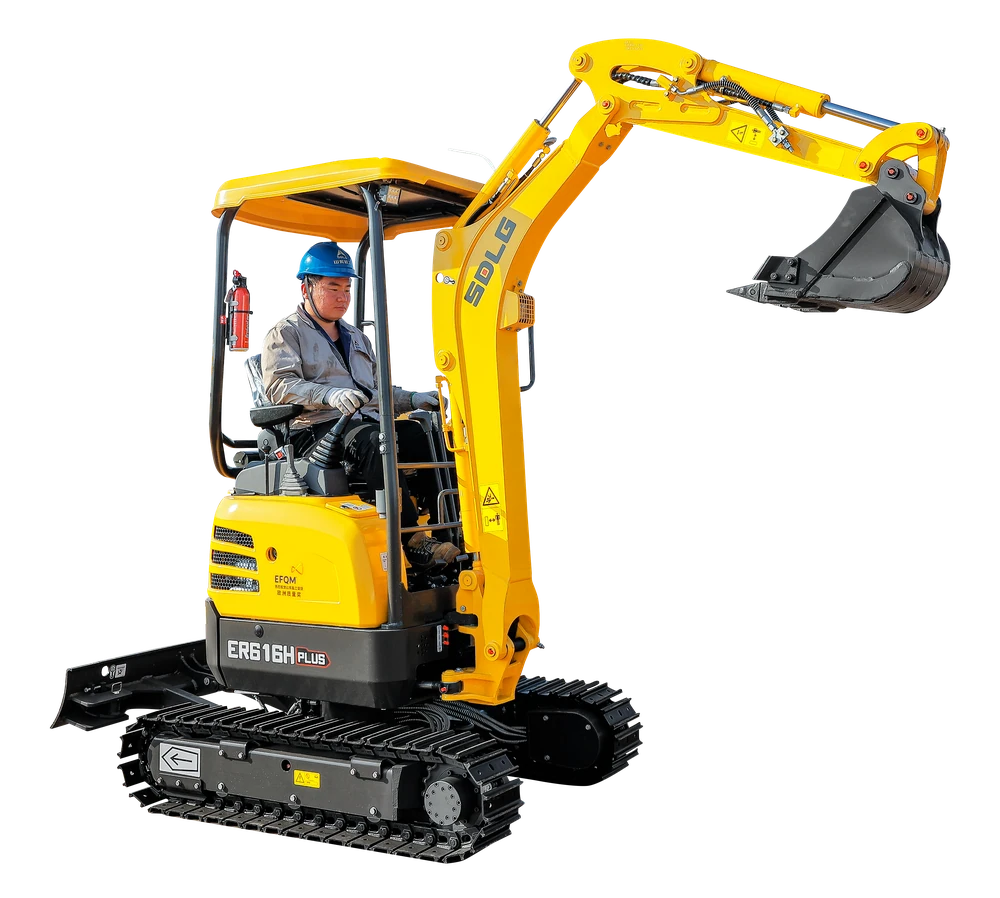

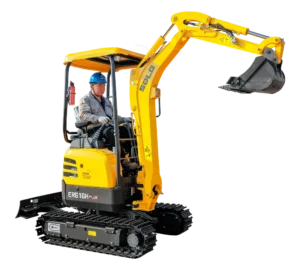

SDLG ER616H Mini Excavator, product view 02

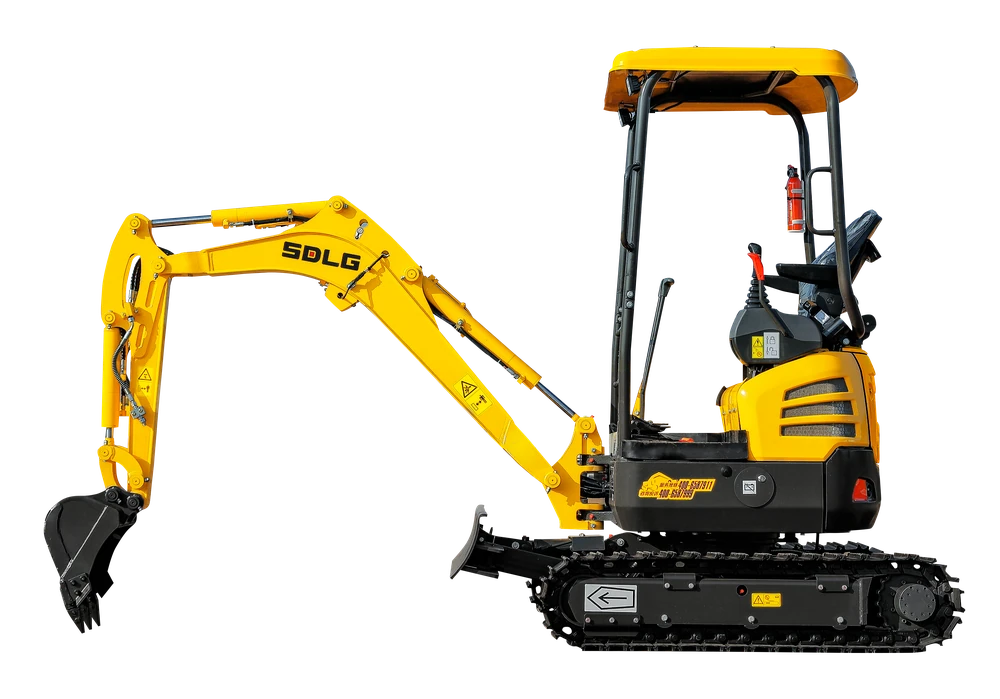

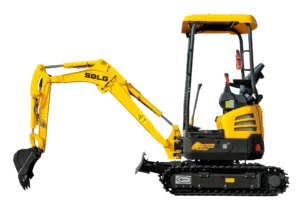

SDLG ER616H Mini Excavator, product view 03

Mini Excavator

ER616H

A compact zero-tail-swing excavator for work in restricted spaces.

Engine power (kW)9.8

Bucket capacity range (m³)0.03–0.06

Bucket capacity (m³)0.04

Operating weight (kg)1880

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A compact zero-tail-swing excavator for work in restricted spaces.

Kubota engine and load-sensing hydraulics.

Boom swing and a retractable undercarriage.

Pilot controls and an X1 auxiliary line.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	1880
Bucket capacity range (m³)	0.03–0.06
Bucket capacity (m³)	0.04
Engine model	D782-ET05_CN4
Engine power (kW)	9.8
Rated engine speed (rpm)	2300
Overall length (mm)	3608
Overall width (mm)	970(1240)
Overall height (mm)	2375
Wheelbase / track wheelbase (mm)	1230
Minimum ground clearance (mm)	145
Maximum digging depth (mm)	2290
Maximum digging radius (mm)	3910
Maximum digging height (mm)	3505
Maximum dumping height (mm)	2490
Maximum digging force (kN)	15
Boom length (mm)	1830
Arm length (mm)	965
Track shoe width (mm)	230
Maximum swing speed (rpm)	9.2
Travel speed, low / high (km/h)	2/4
Engine displacement (ml)	778
Emission standard, specified configuration	GB20891-2014China IV
Ground pressure (kPa)	30

Specifications shown for configuration E016HK4481AT5A0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
