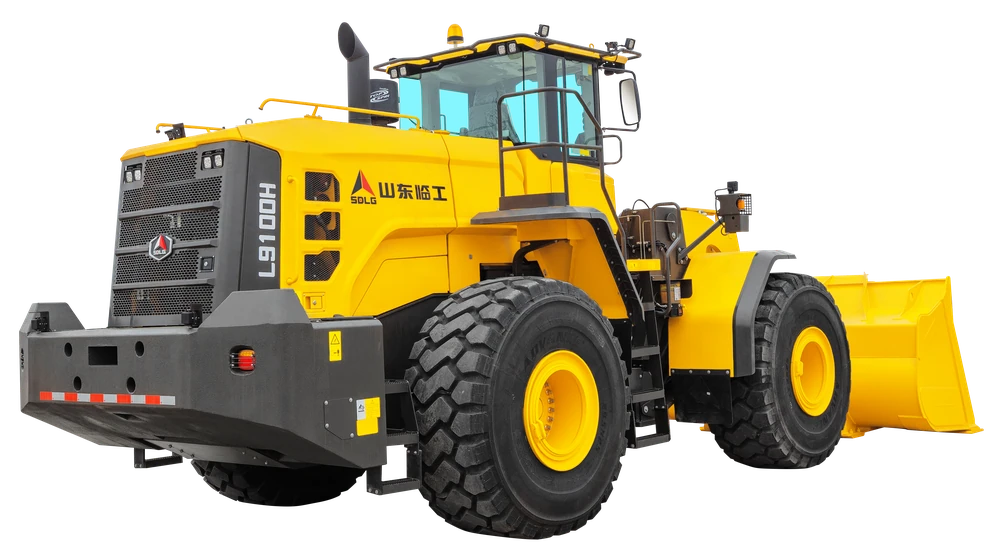

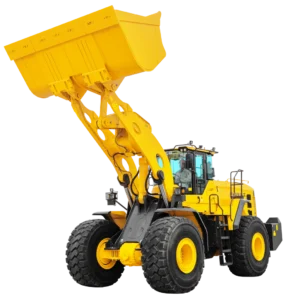

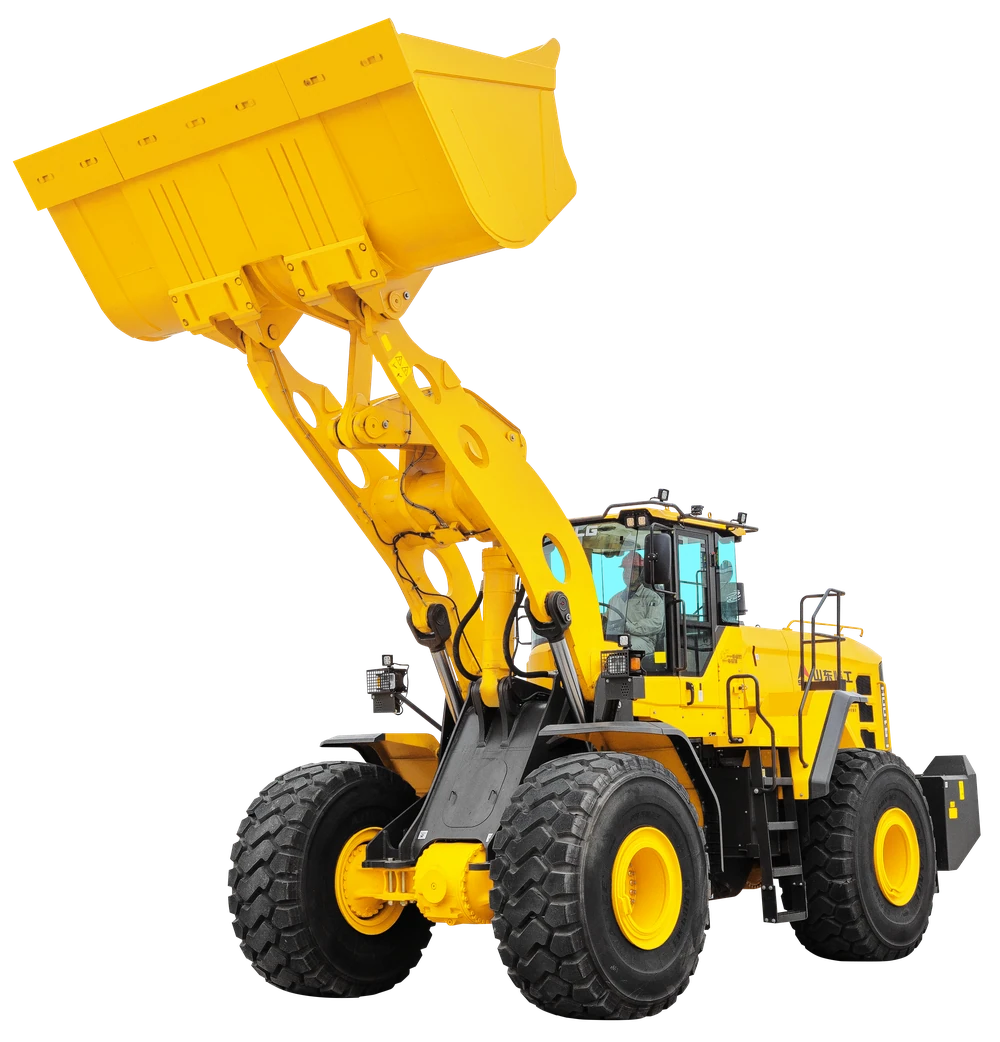

SDLG L9100H Wheel Loader, product view 02

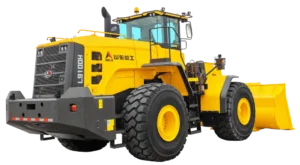

SDLG L9100H Wheel Loader, product view 01
SDLG L9100H Wheel Loader, product view 02
SDLG L9100H Wheel Loader, product view 01

Wheel Loader

L9100H

A heavy-duty wheel loader designed for high-load material handling and demanding mining conditions.

Rated load (kg)10000
Engine power (kW)287
Bucket capacity range (m³)7.0(5.6–10.0)
Operating weight (kg)34600
Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A heavy-duty wheel loader designed for high-load material handling and demanding mining conditions.

SDLG L9100H Wheel Loader

Weichai WP13 engine and ZF automatic transmission.

Box-section frame with a long wheelbase.

Heavy-duty radial tyres and accessible service points.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)34600
Rated load (kg)10000
Bucket capacity range (m³)7.0(5.6–10.0)
Engine modelWP13G390E302
Engine power (kW)287
Rated engine speed (rpm)2100 r/min
Overall length (mm)10000
Overall width (mm)3640
Overall height (mm)3800
Wheelbase / track wheelbase (mm)3800
Minimum ground clearance (mm)480 mm
Turning radius (mm)6470 mm
Breakout force (kN)275 kN
Maximum traction force (kN)290 kN
Dumping height at 45° (mm)3475
Dumping reach at 45° (mm)1560 mm
Lifting time, loaded (s)≤5.3 s
Total cycle time (s)≤9.5 s
Tyre size29.5R25
Engine displacement (ml)12540
Emission standard, specified configurationGB 20891-2014(China III)

Specifications shown for configuration L100HW3228G26E0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.

SDLG L9100H Wheel Loader

PRODUCT GALLERY

TAKE A CLOSER LOOK.

SDLG L9100H product view 1SDLG L9100H product view 2
