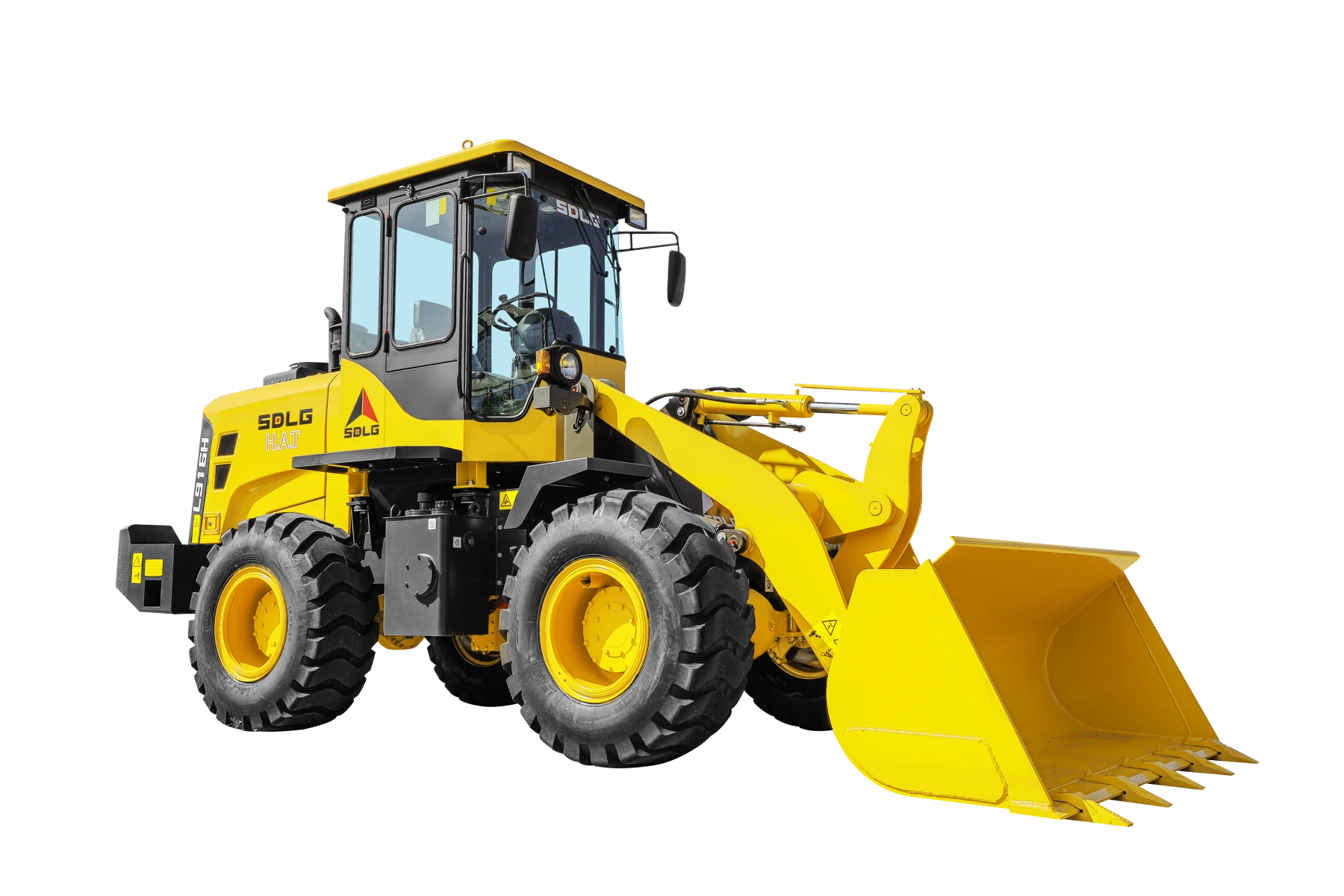

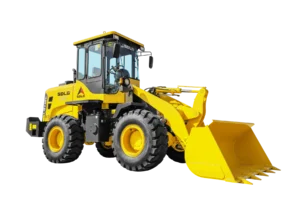

SDLG L916H Wheel Loader, product view 01

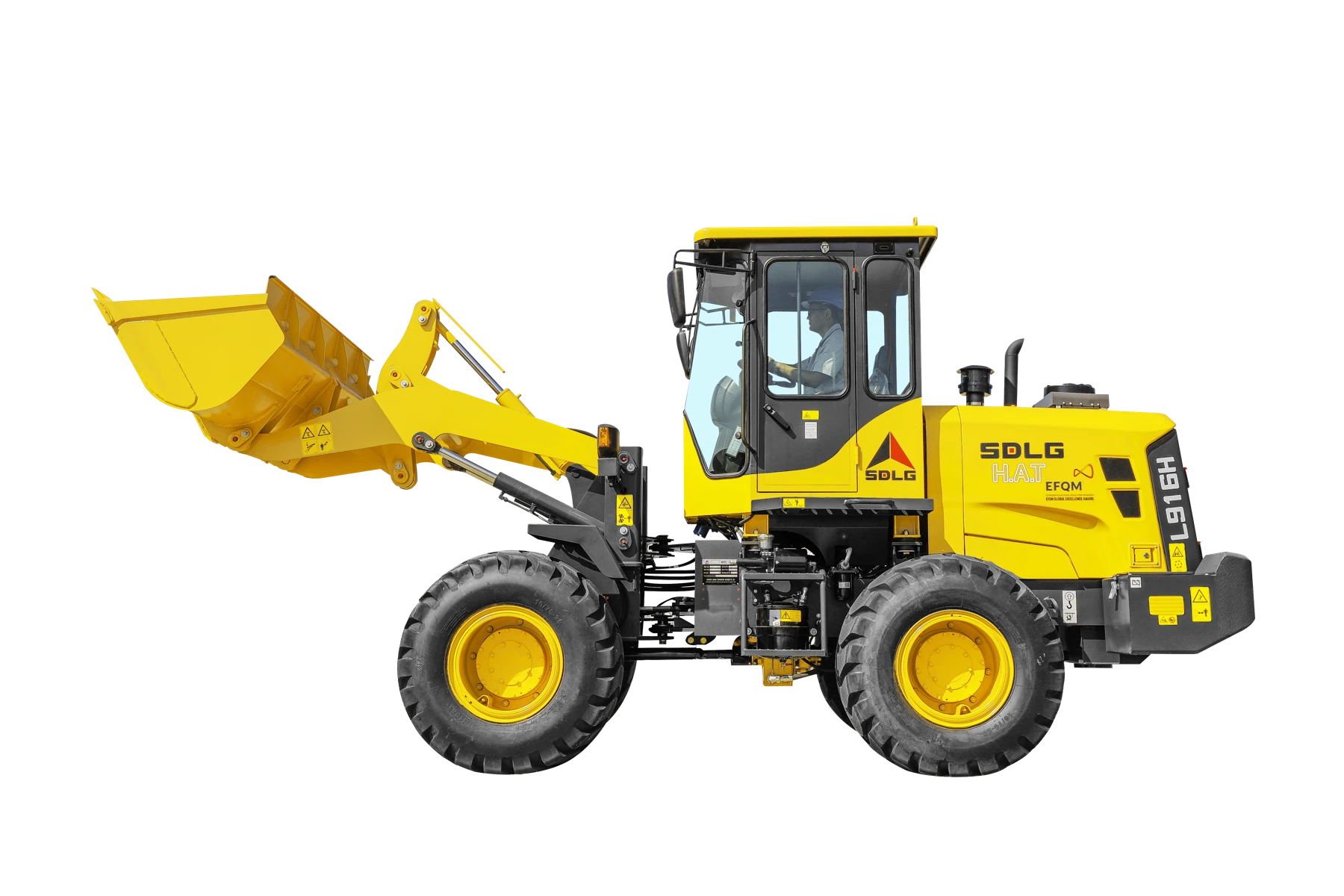

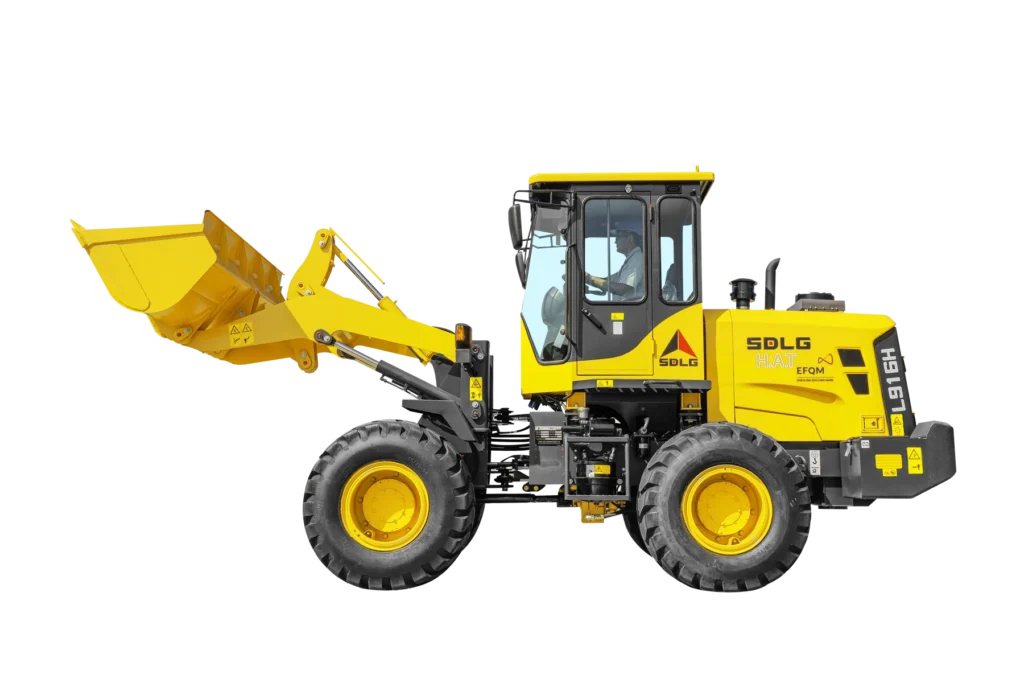

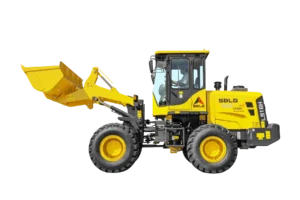

SDLG L916H Wheel Loader, product view 03

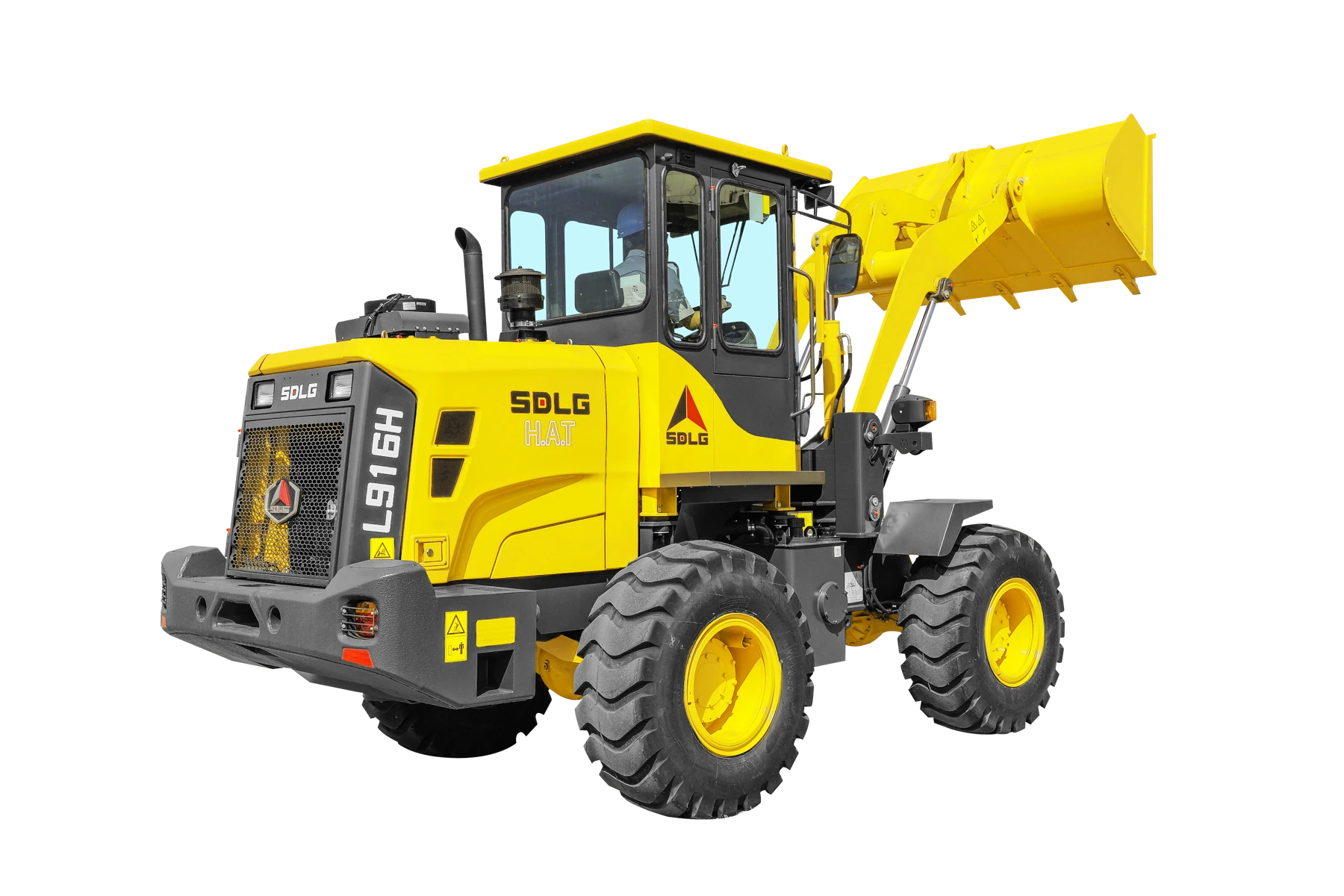

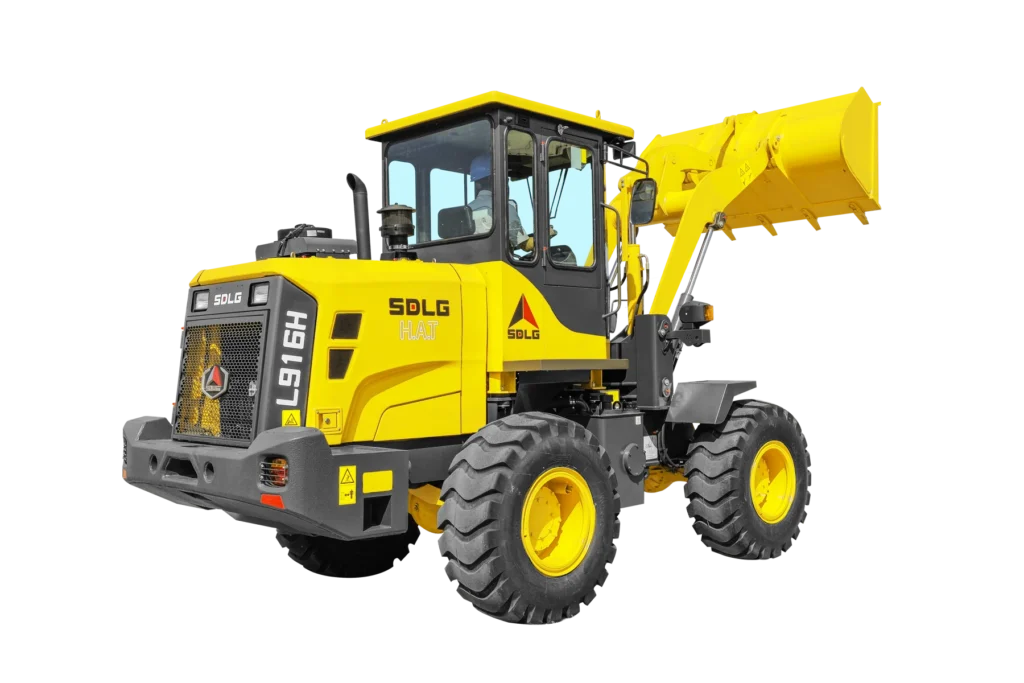

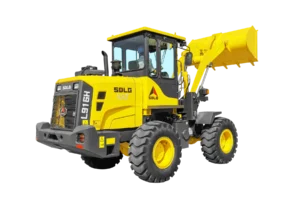

SDLG L916H Wheel Loader, product view 04

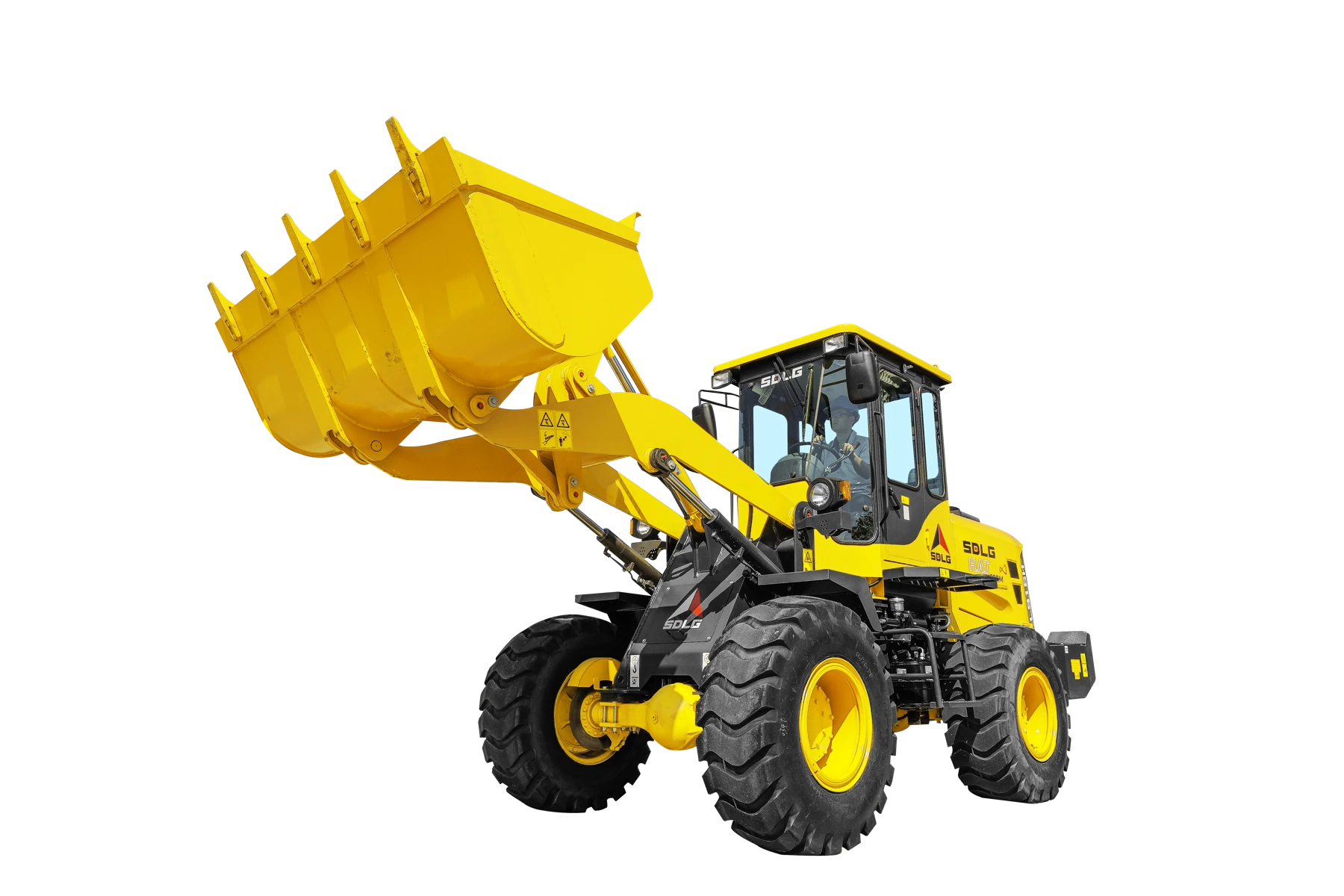

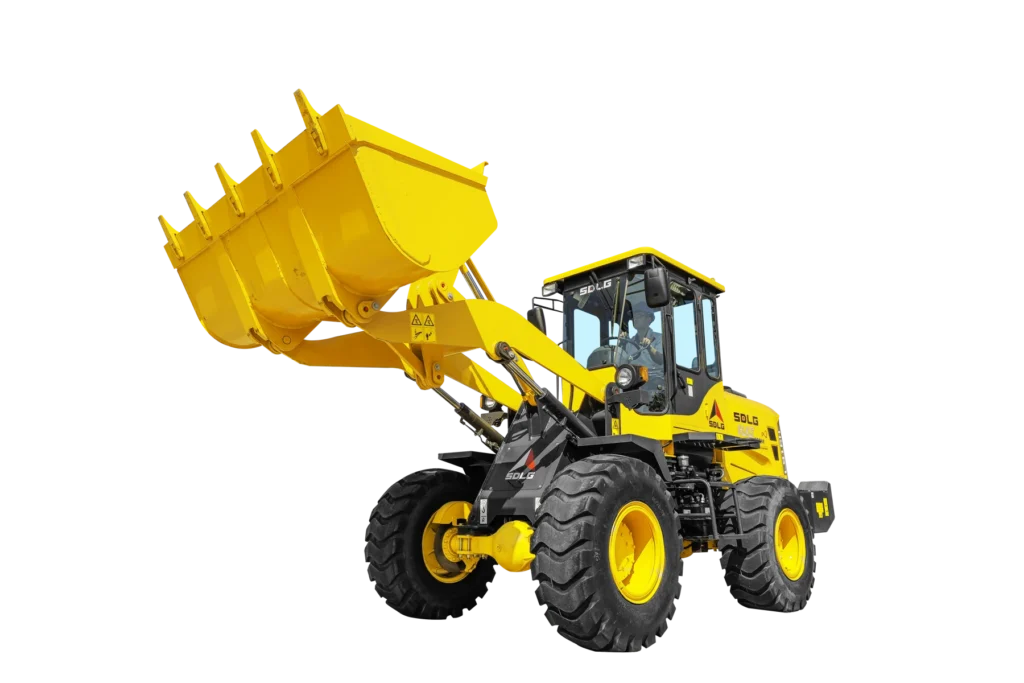

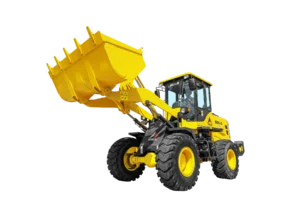

SDLG L916H Wheel Loader, product view 05

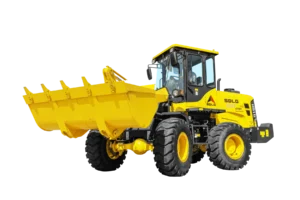

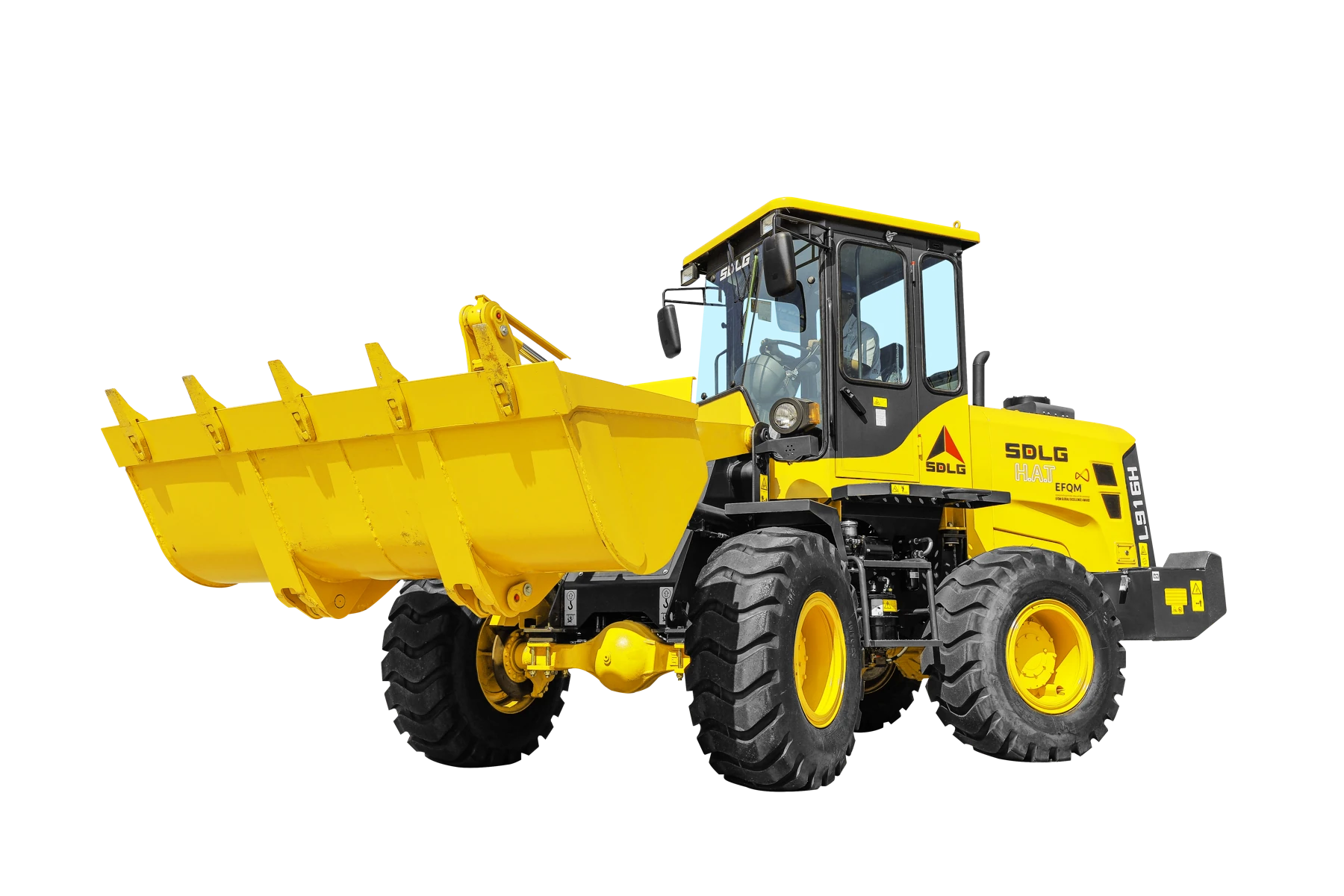

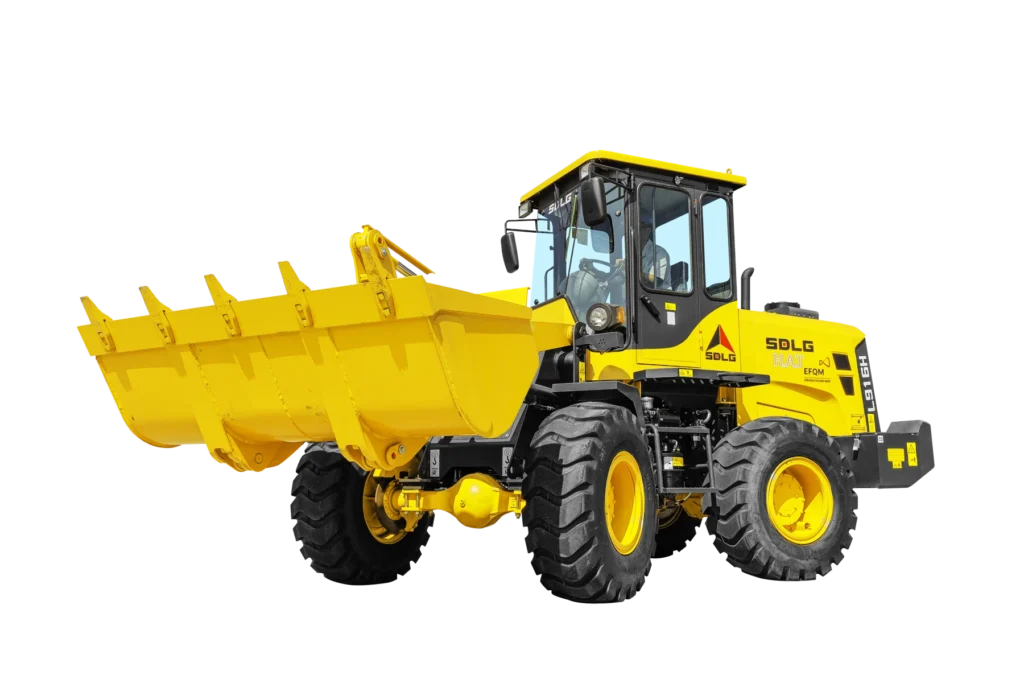

SDLG L916H Wheel Loader, product view 06

Wheel Loader

L916H

A compact wheel loader with adaptable power modes for everyday loading and material handling.

Rated load (kg)1600

Engine power (kW)61.8

Bucket capacity range (m³)0.8m3

Operating weight (kg)5250

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A compact wheel loader with adaptable power modes for everyday loading and material handling.

Yunnei engine with P, S and E power modes.

Reinforced steel frame and ZL20A axle.

High and low transmission ranges and optimized hydraulics.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	5250
Rated load (kg)	1600
Bucket capacity range (m³)	0.8m3
Engine model	YN4EZ080-30CR
Engine power (kW)	61.8
Rated engine speed (rpm)	2400 r/min
Overall length (mm)	5765
Overall width (mm)	2140
Overall height (mm)	2925
Wheelbase / track wheelbase (mm)	2235
Minimum ground clearance (mm)	330mm
Turning radius (mm)	4490 mm
Breakout force (kN)	47 kN
Maximum traction force (kN)	≥50kN
Dumping height at 45° (mm)	2455mm
Dumping reach at 45° (mm)	865 mm
Lifting time, loaded (s)	≤4.9 s
Total cycle time (s)	≤8.3 s
Tyre size	16/70-20
Engine displacement (ml)	3800
Emission standard, specified configuration	GB 20891-2014(China III)

Specifications shown for configuration L016HN3214A29E1. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
