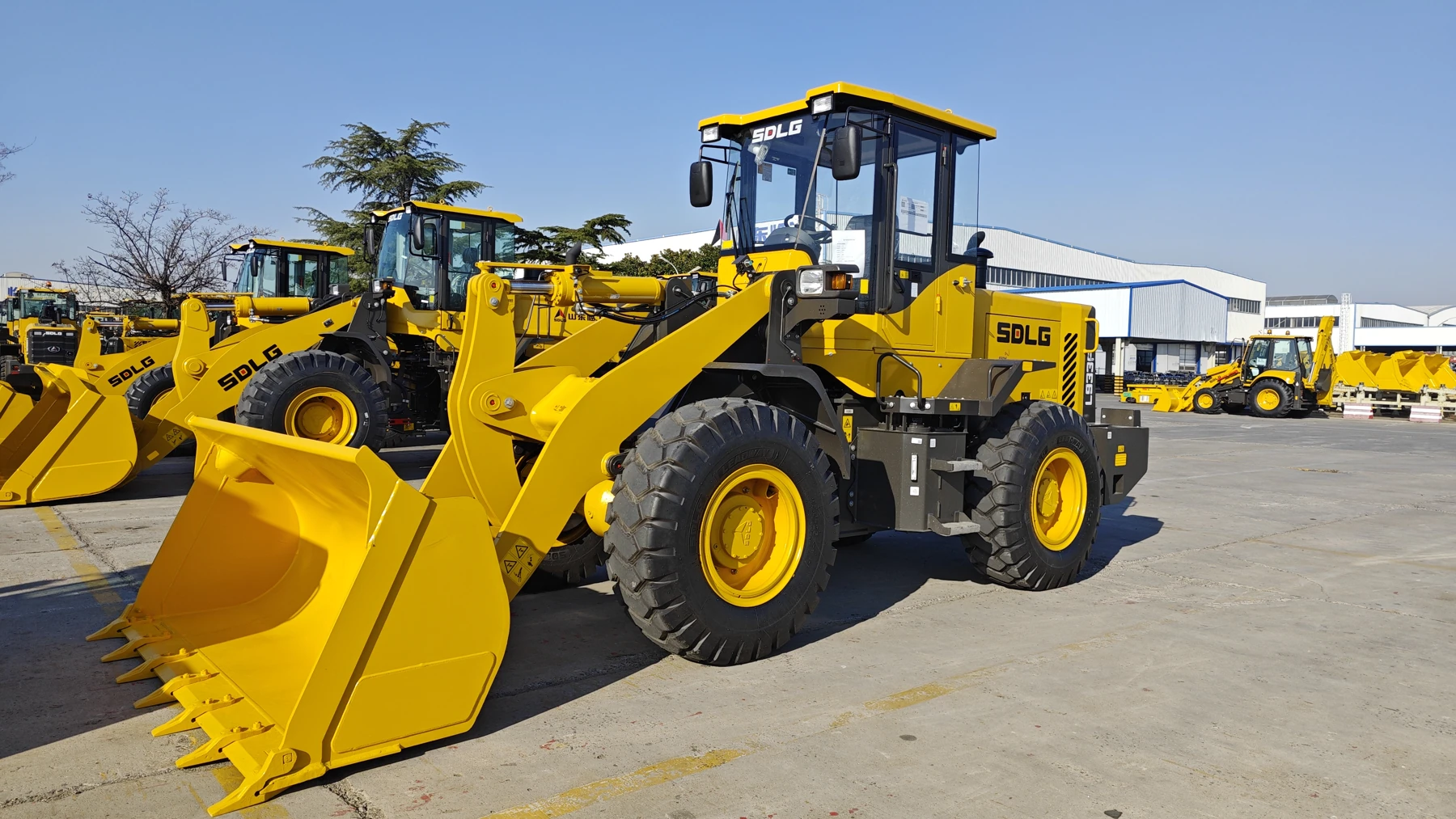

SDLG L933F Wheel Loader, product view 04

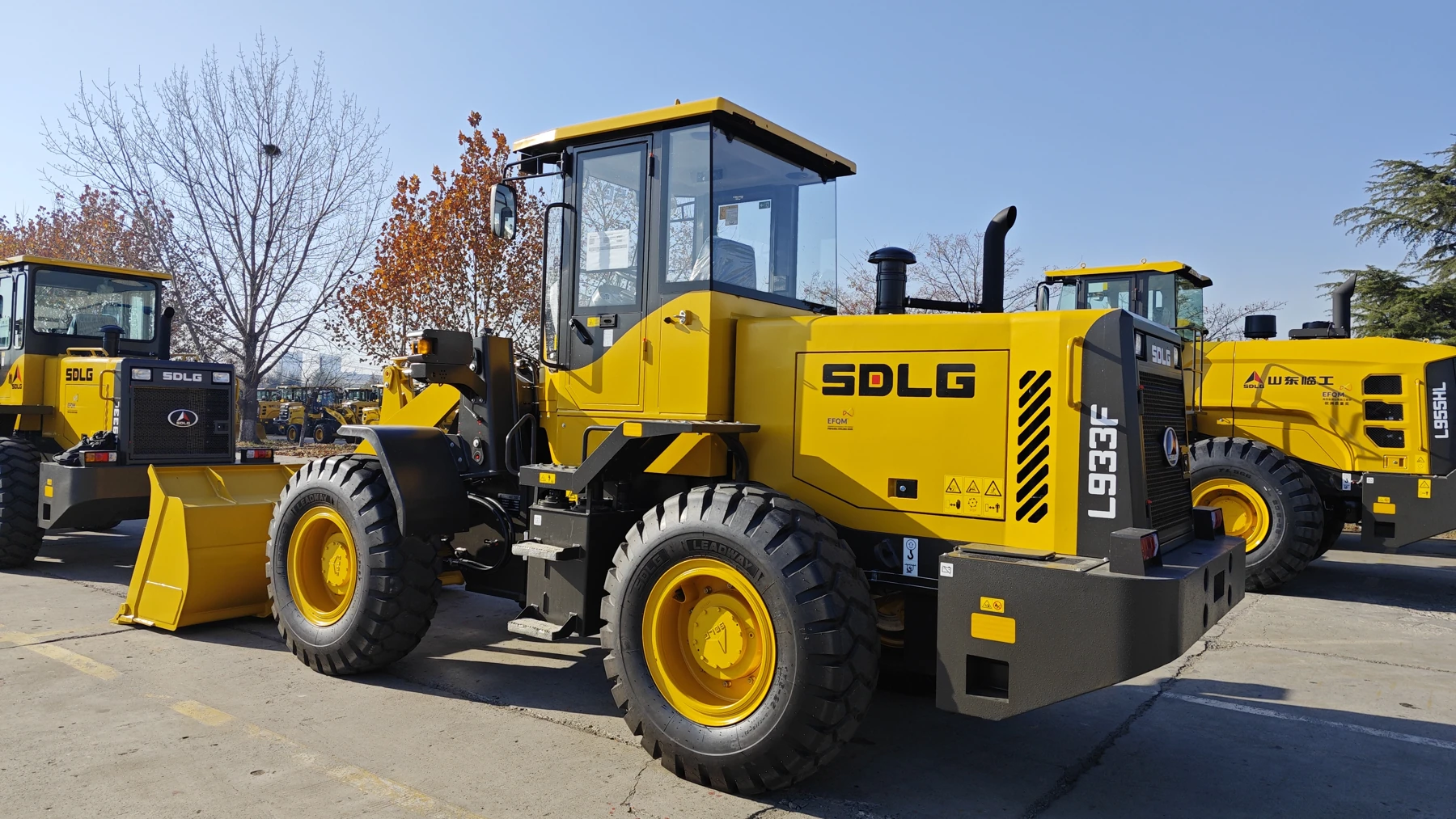

SDLG L933F Wheel Loader, product view 02

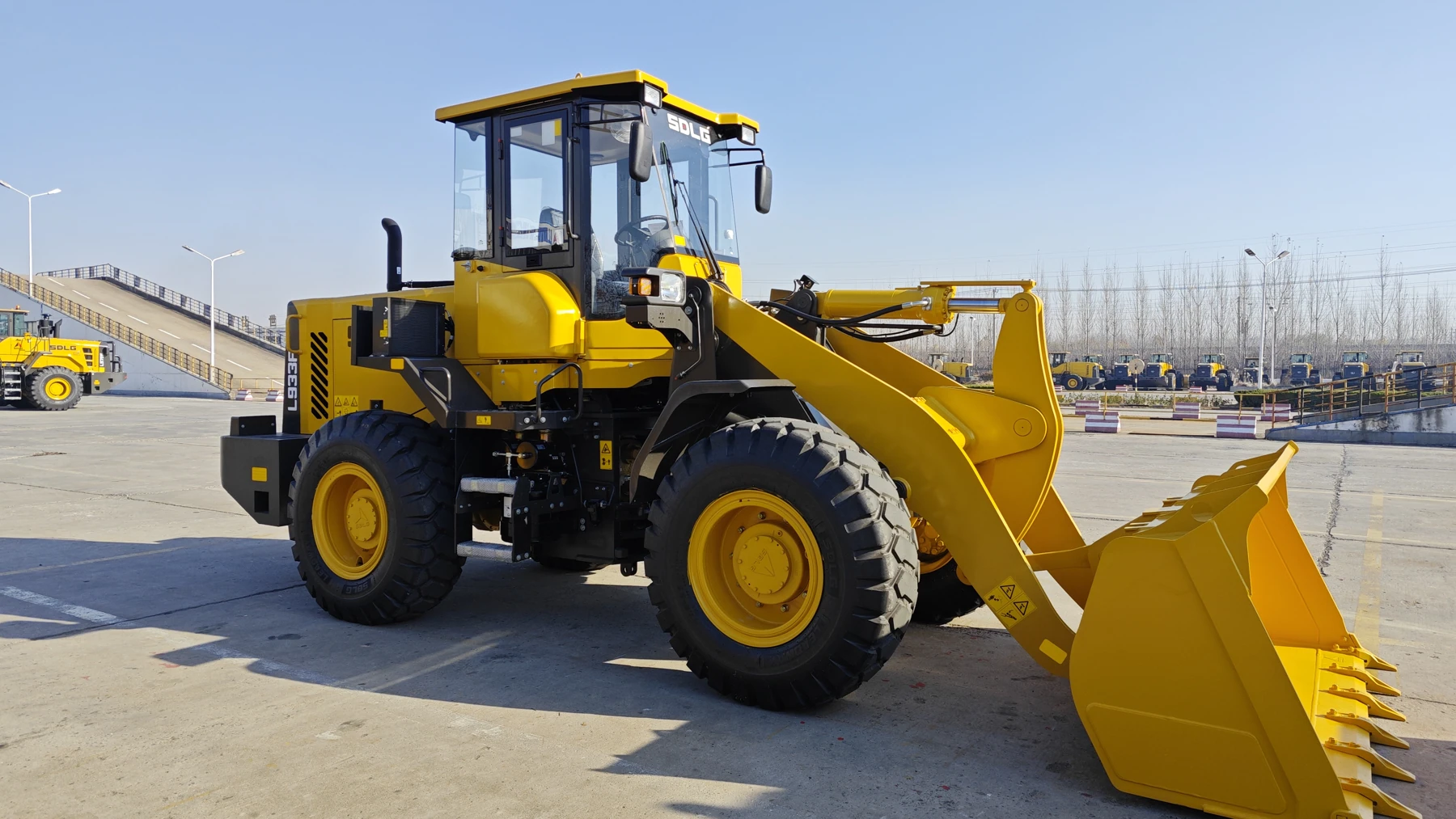

SDLG L933F Wheel Loader, product view 03

Wheel Loader

L933F

A practical wheel loader for loading and material handling, with a robust drivetrain and working equipment.

Rated load (kg)3000

Engine power (kW)92

Bucket capacity range (m³)1.8 (optional 1.5–2.5)

Operating weight (kg)10300

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A practical wheel loader for loading and material handling, with a robust drivetrain and working equipment.

Weichai engine in the supplied configuration.

Fixed-shaft powershift transmission with four forward and two reverse gears.

Reinforced axle and optimized bucket and boom geometry.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	10300
Rated load (kg)	3000
Bucket capacity range (m³)	1.8 (optional 1.5–2.5)
Engine model	WP6G125E22
Engine power (kW)	92
Rated engine speed (rpm)	2200 r/min
Overall length (mm)	7110
Overall width (mm)	2520
Overall height (mm)	3240
Wheelbase / track wheelbase (mm)	2850
Minimum ground clearance (mm)	375 mm
Turning radius (mm)	5375mm
Breakout force (kN)	≥96 kN
Maximum traction force (kN)	≥96 kN
Dumping height at 45° (mm)	2950 mm
Dumping reach at 45° (mm)	1050 mm
Lifting time, loaded (s)	≤5.2 s
Total cycle time (s)	≤9.0 s
Tyre size	17.5-25
Engine displacement (ml)	6750
Emission standard, specified configuration	GB 20891-2007(China II)

Specifications shown for configuration L033FW2215A29E0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
