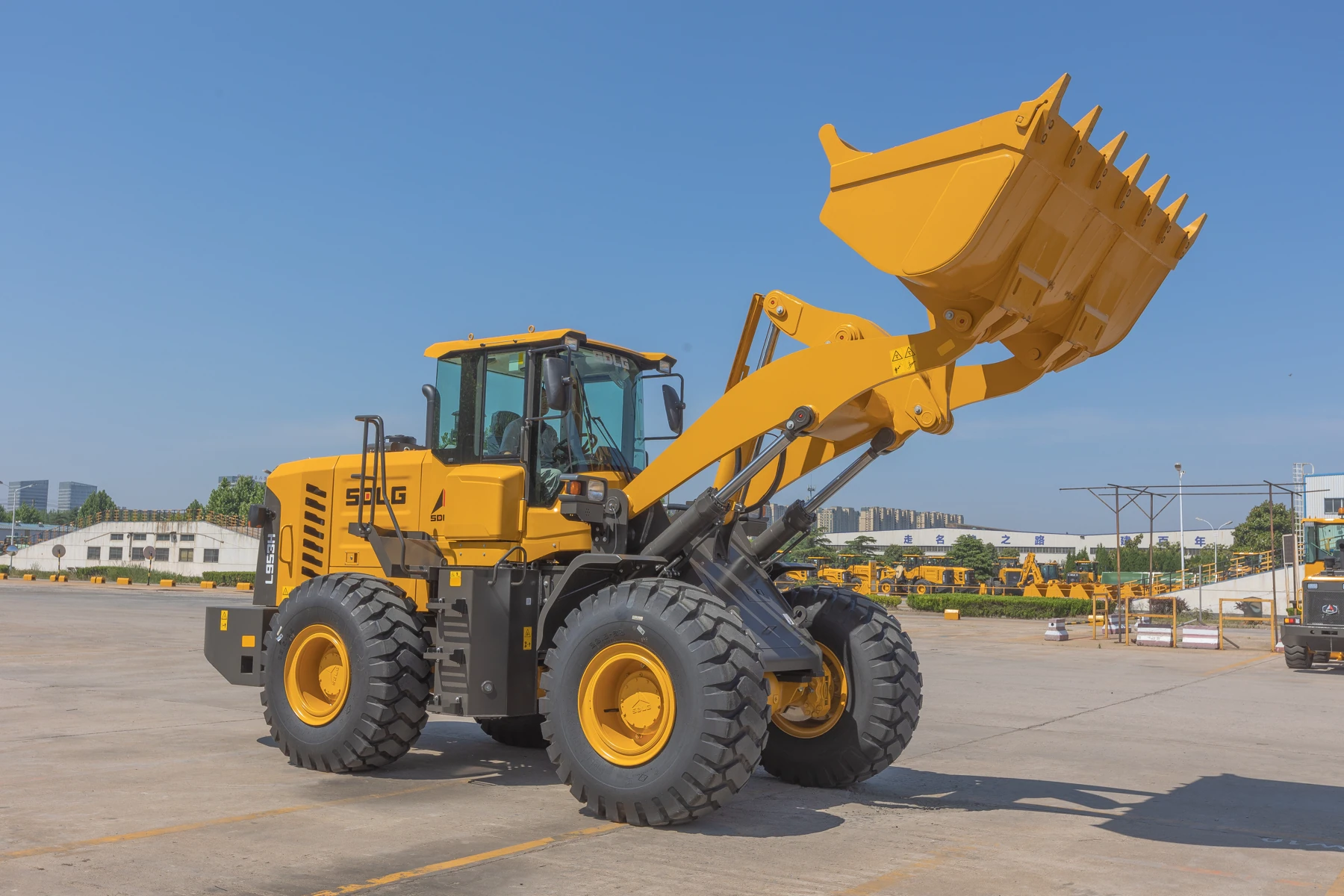

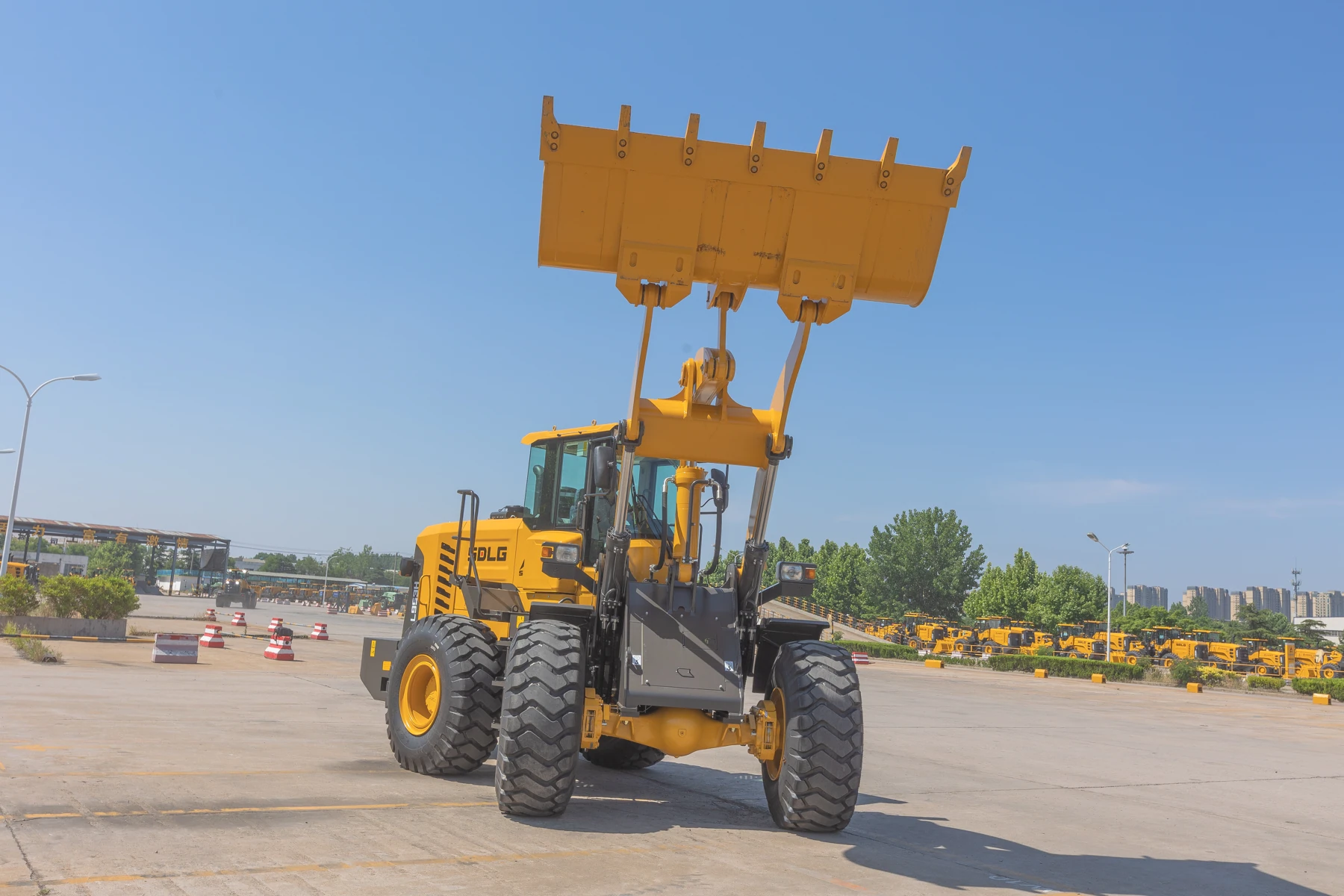

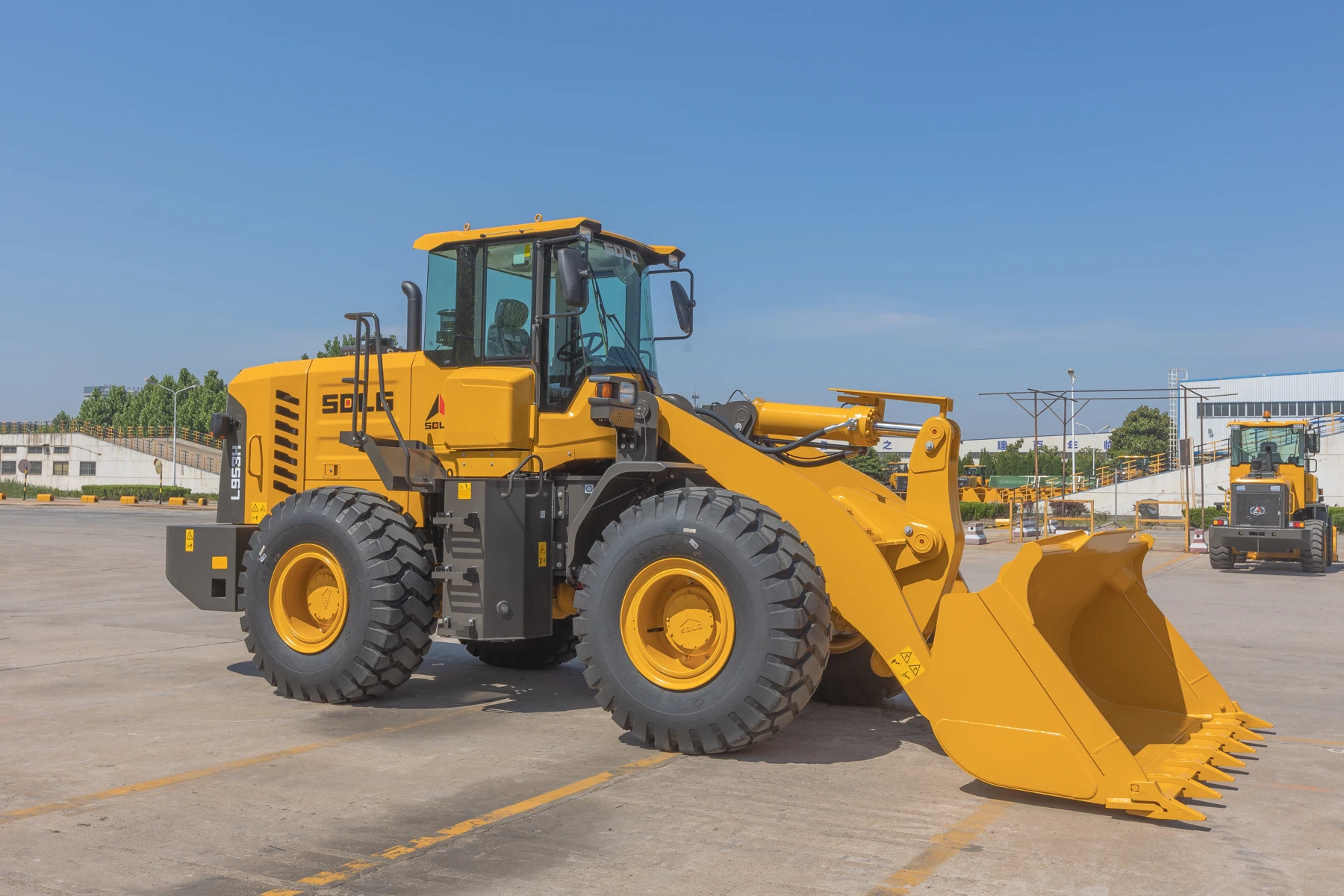

SDLG L953H Wheel Loader, China Tier II, product view 01

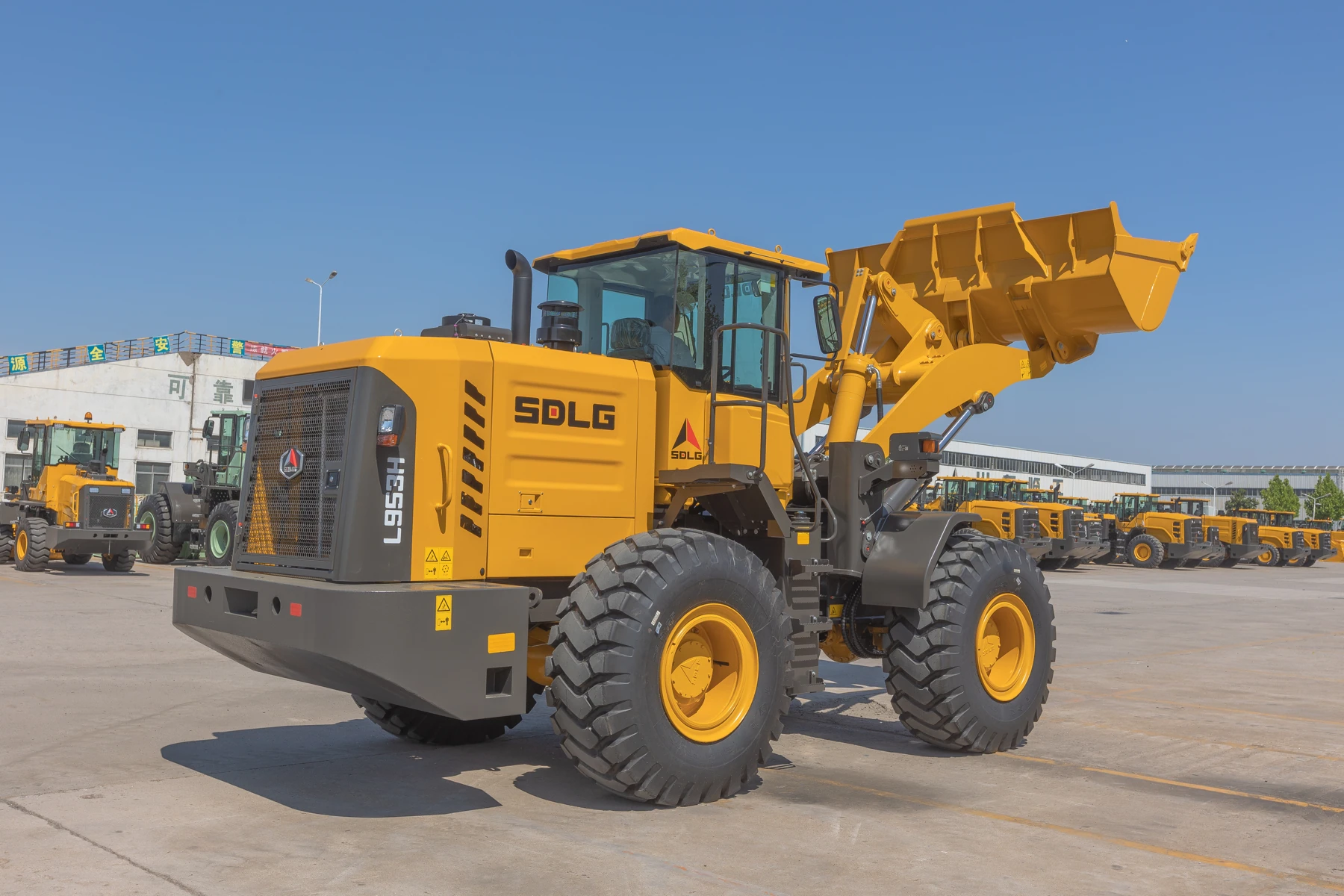

SDLG L953H Wheel Loader, China Tier II, product view 03

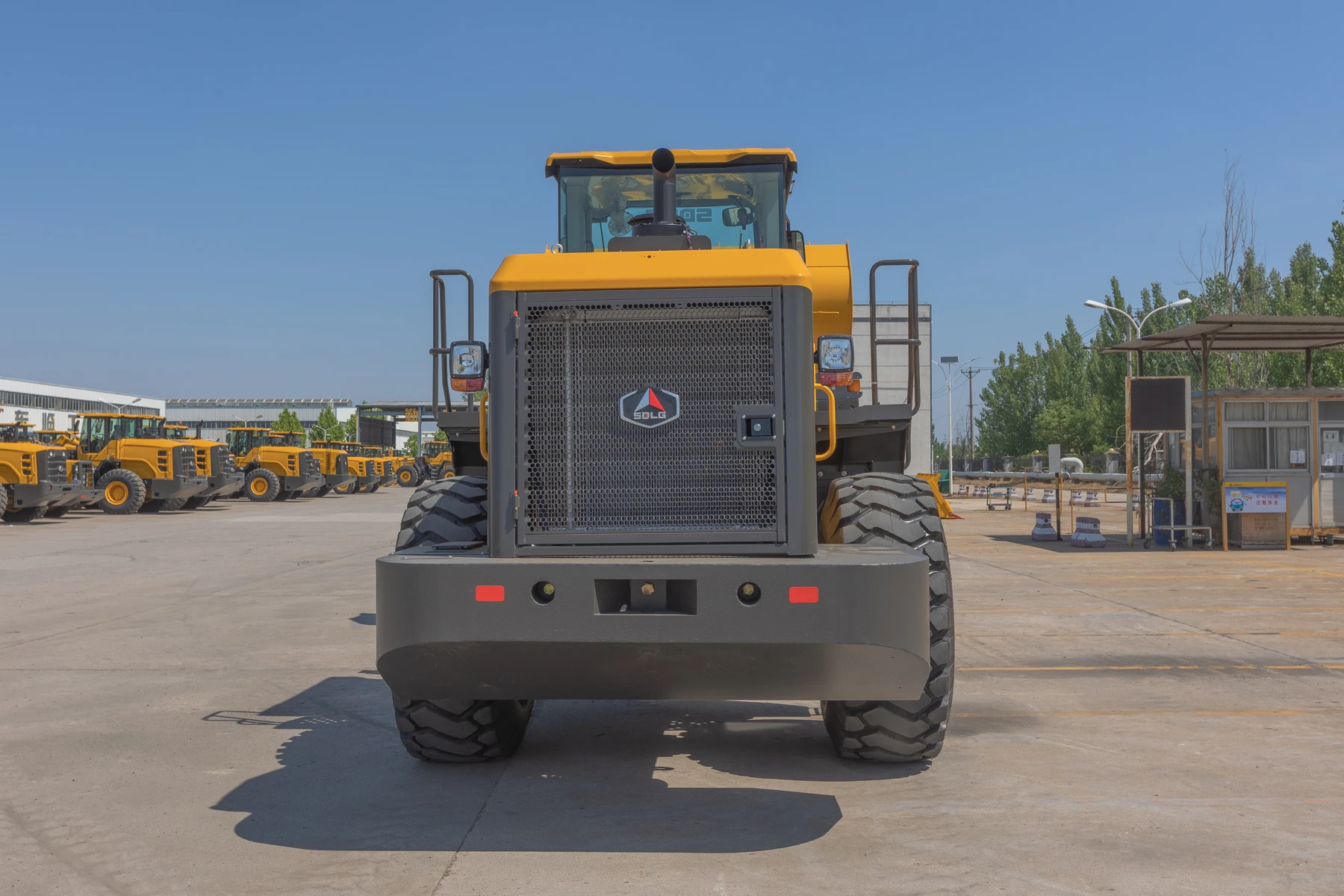

SDLG L953H Wheel Loader, China Tier II, product view 04

SDLG L953H Wheel Loader, China Tier II, product view 05

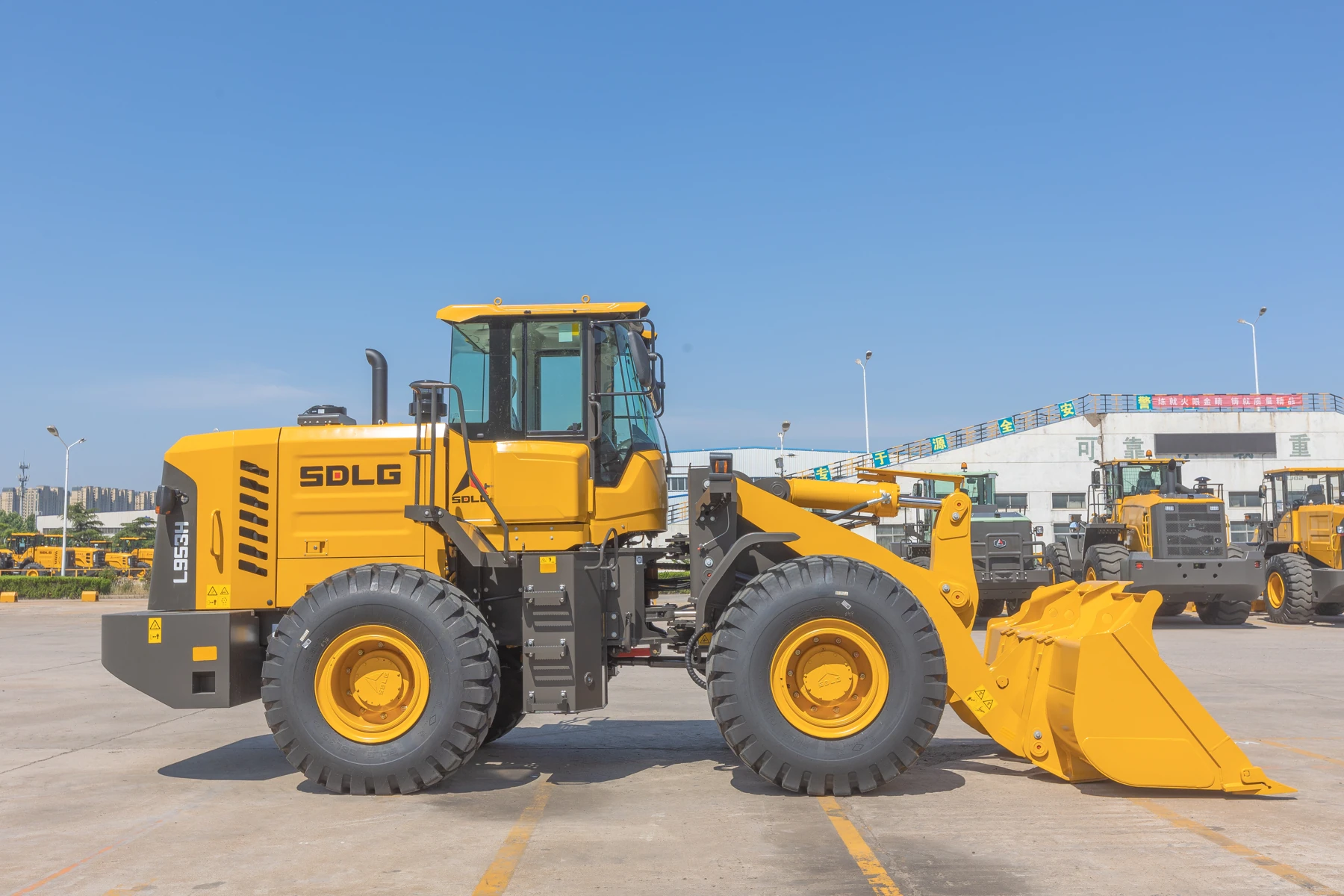

SDLG L953H Wheel Loader, China Tier II, product view 06

Wheel Loader, China Tier II

L953H

An H-series wheel loader supplied in a China Tier II engine configuration.

Rated load (kg)5000

Engine power (kW)162

Bucket capacity range (m³)2.8(optional 2.4–4.5)

Operating weight (kg)16900

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

An H-series wheel loader supplied in a China Tier II engine configuration.

Weichai engine matched to a planetary powershift transmission.

Two forward gears and one reverse gear.

Reinforced axle and H-series cab.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	16900
Rated load (kg)	5000
Bucket capacity range (m³)	2.8(optional 2.4–4.5)
Engine model	WD10G220E21
Engine power (kW)	162
Rated engine speed (rpm)	2200
Overall length (mm)	8000
Overall width (mm)	3024
Overall height (mm)	3423
Wheelbase / track wheelbase (mm)	3000
Minimum ground clearance (mm)	534
Turning radius (mm)	6040
Breakout force (kN)	175
Maximum traction force (kN)	152
Dumping height at 45° (mm)	3130 mm
Dumping reach at 45° (mm)	1220
Lifting time, loaded (s)	≤5.4
Total cycle time (s)	≤9.3
Tyre size	23.5-25
Engine displacement (ml)	9726
Emission standard, specified configuration	GB 20891-2007(China II)

Specifications shown for configuration L053HW2115A29E0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
