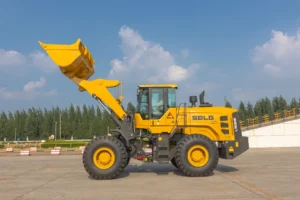

SDLG L956HE Wheel Loader, product view 02

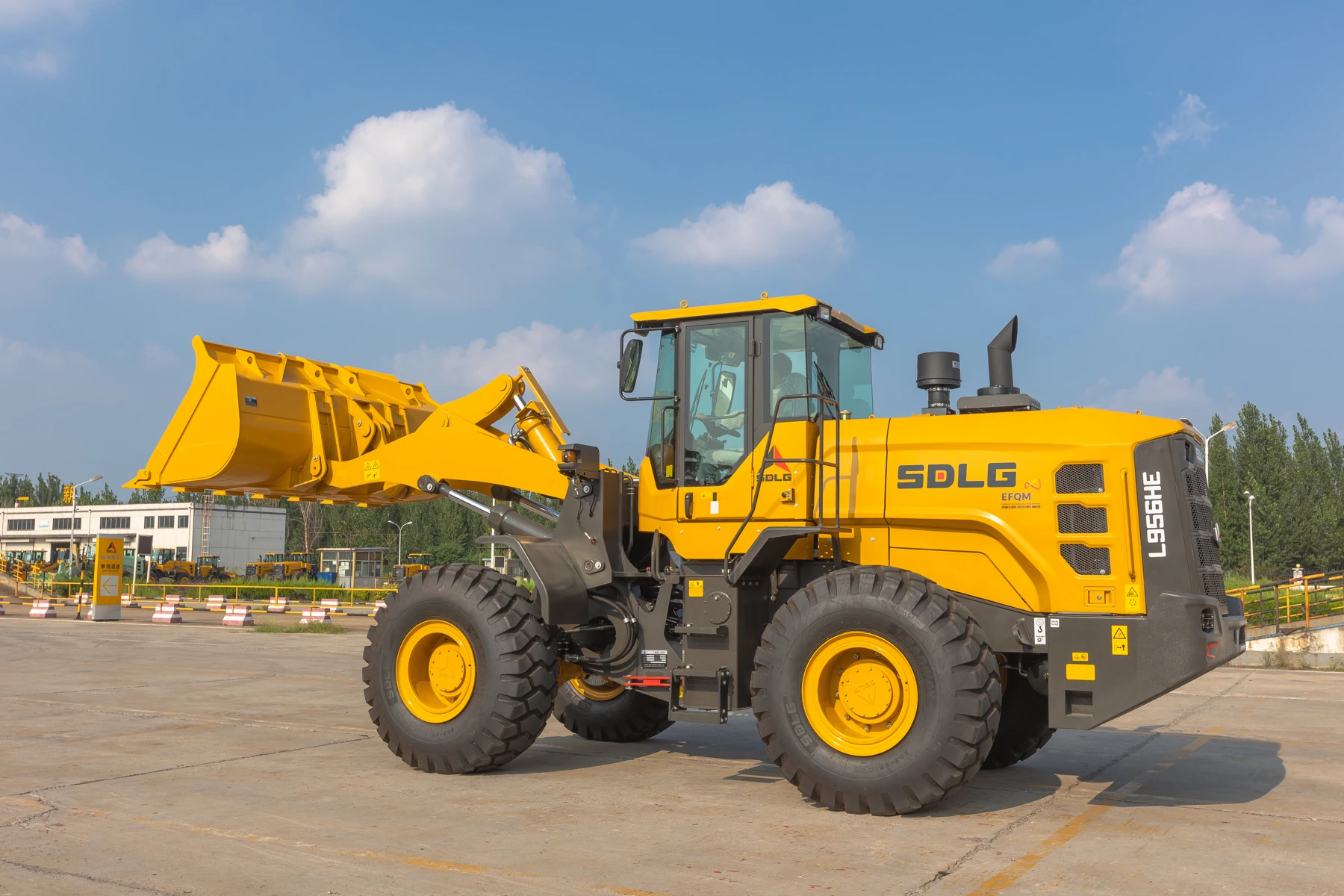

SDLG L956HE Wheel Loader, product view 03

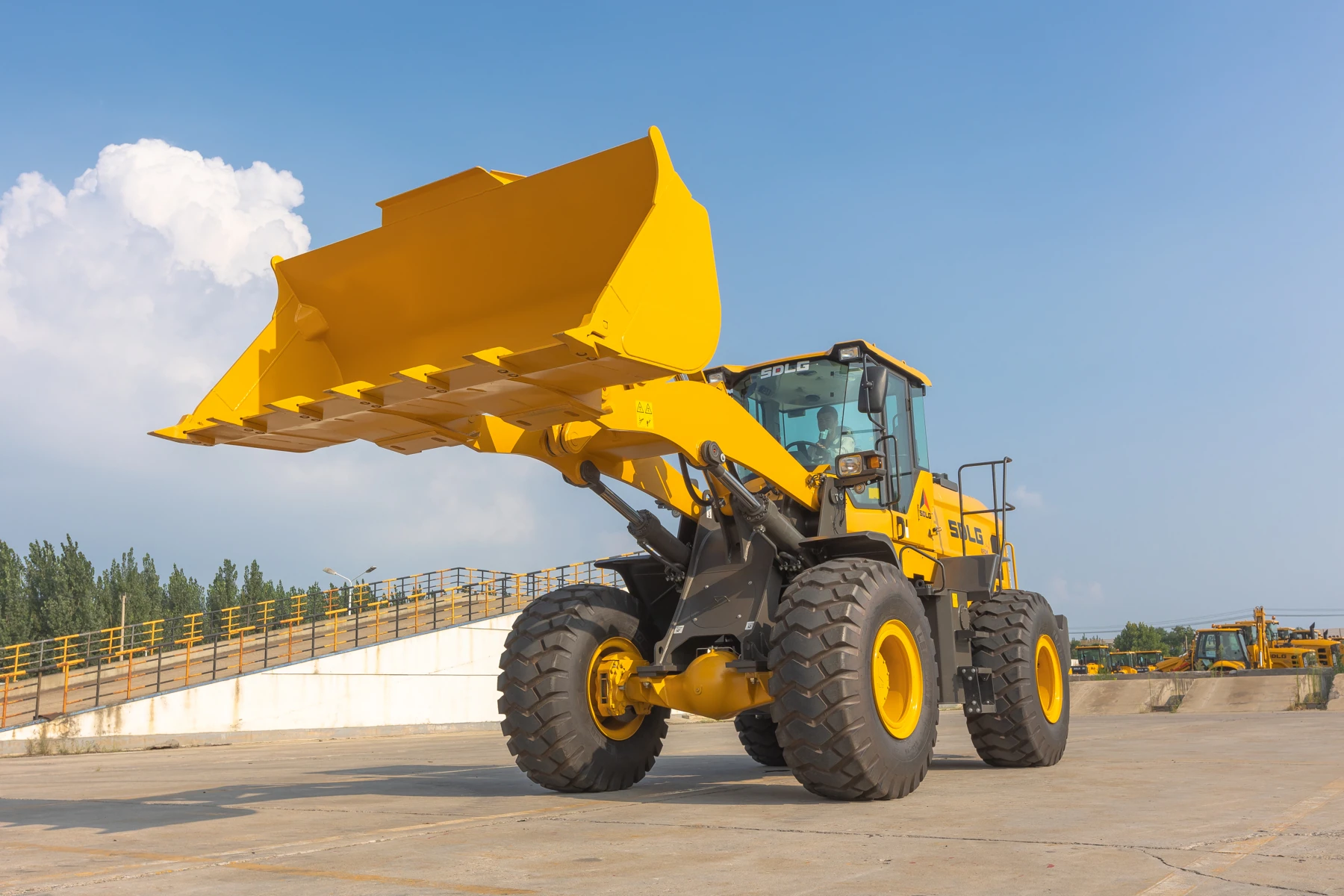

SDLG L956HE Wheel Loader, product view 04

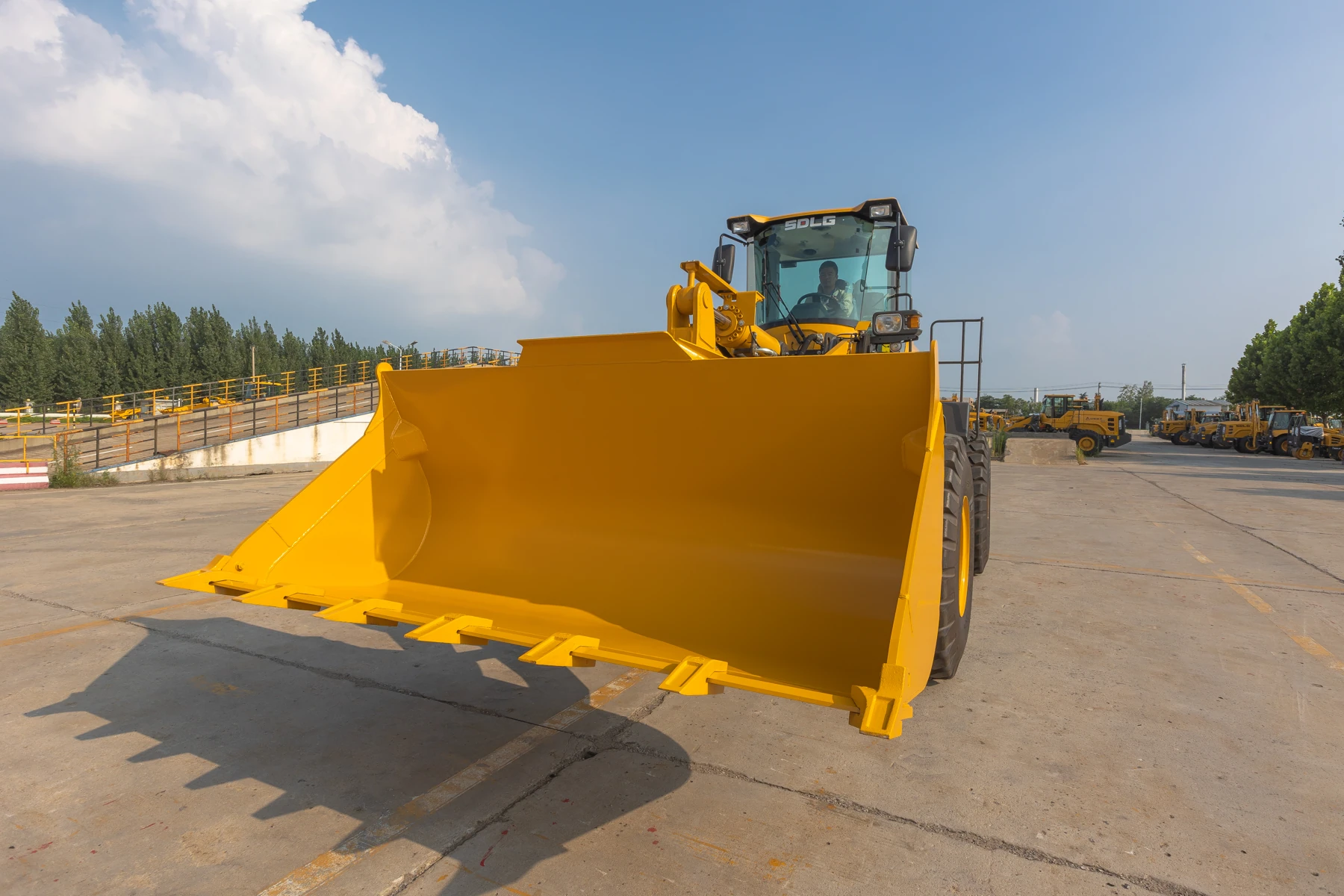

SDLG L956HE Wheel Loader, product view 05

SDLG L956HE Wheel Loader, product view 06

Wheel Loader

L956HE

A diesel wheel loader with matched engine and torque-converter performance for demanding loading tasks.

Rated load (kg)5300

Engine power (kW)162

Bucket capacity range (m³)3.0(2.7–4.5)

Operating weight (kg)17080

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A diesel wheel loader with matched engine and torque-converter performance for demanding loading tasks.

Powertrain matched for traction, breakout and lifting performance.

Stable machine layout and responsive working equipment.

Spacious, quiet cab with air conditioning.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	17080
Rated load (kg)	5300
Bucket capacity range (m³)	3.0(2.7–4.5)
Engine model	WD10G220E23
Engine power (kW)	162
Rated engine speed (rpm)	2000 r/min
Overall length (mm)	8250
Overall width (mm)	3024
Overall height (mm)	3466
Wheelbase / track wheelbase (mm)	3300
Minimum ground clearance (mm)	435 mm
Turning radius (mm)	6200 mm
Breakout force (kN)	≥175 kN
Maximum traction force (kN)	165 kN
Dumping height at 45° (mm)	3100 mm
Dumping reach at 45° (mm)	1210 mm
Lifting time, loaded (s)	≤5.5 s
Total cycle time (s)	≤9.8 s
Tyre size	23.5-25
Engine displacement (ml)	9726
Emission standard, specified configuration	GB 20891-2007(China II)

Specifications shown for configuration L056HW2115A29E0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
