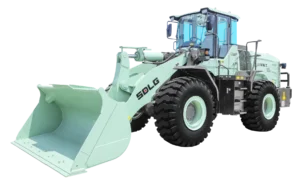

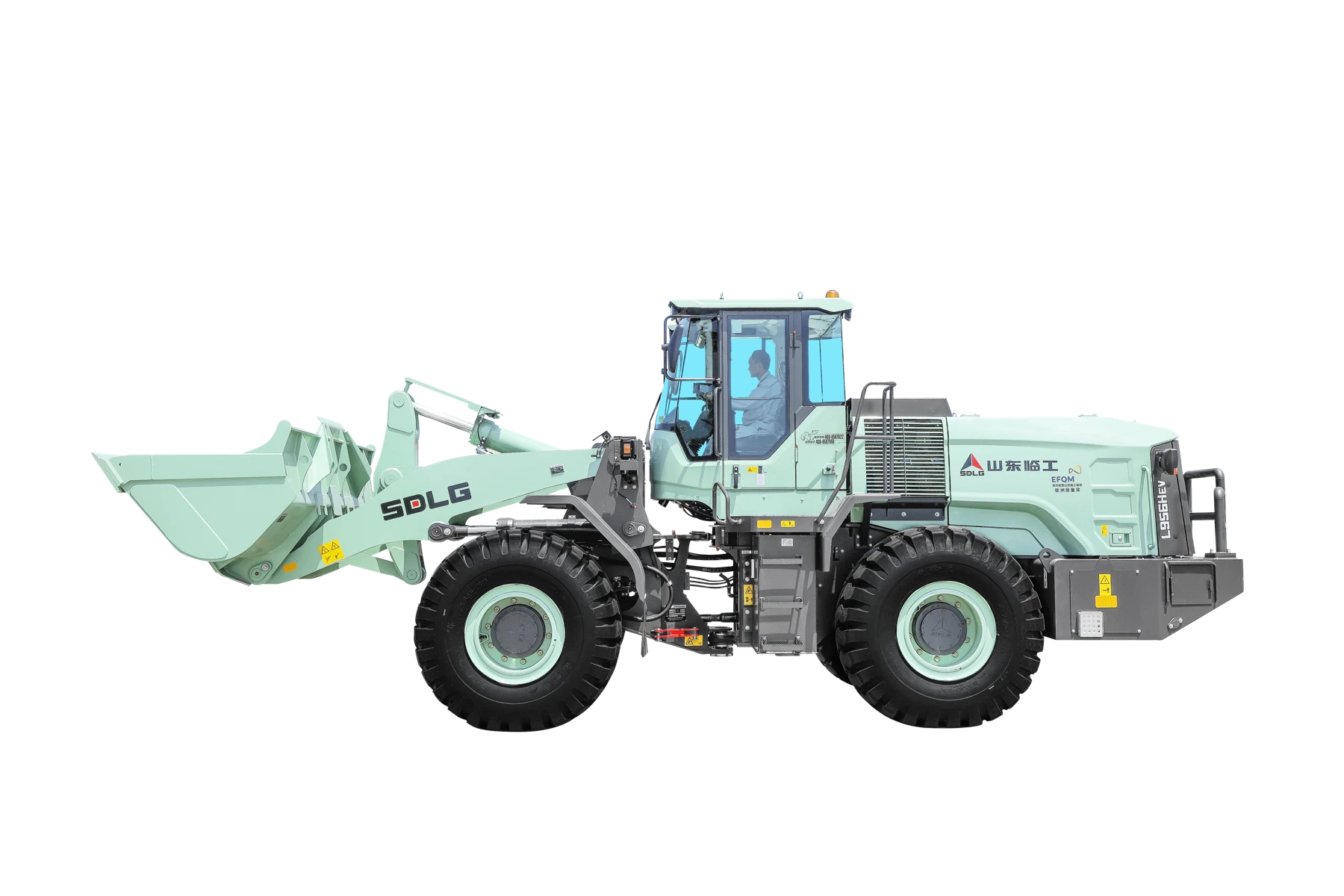

SDLG L956HEV Electric Wheel Loader, product view 01

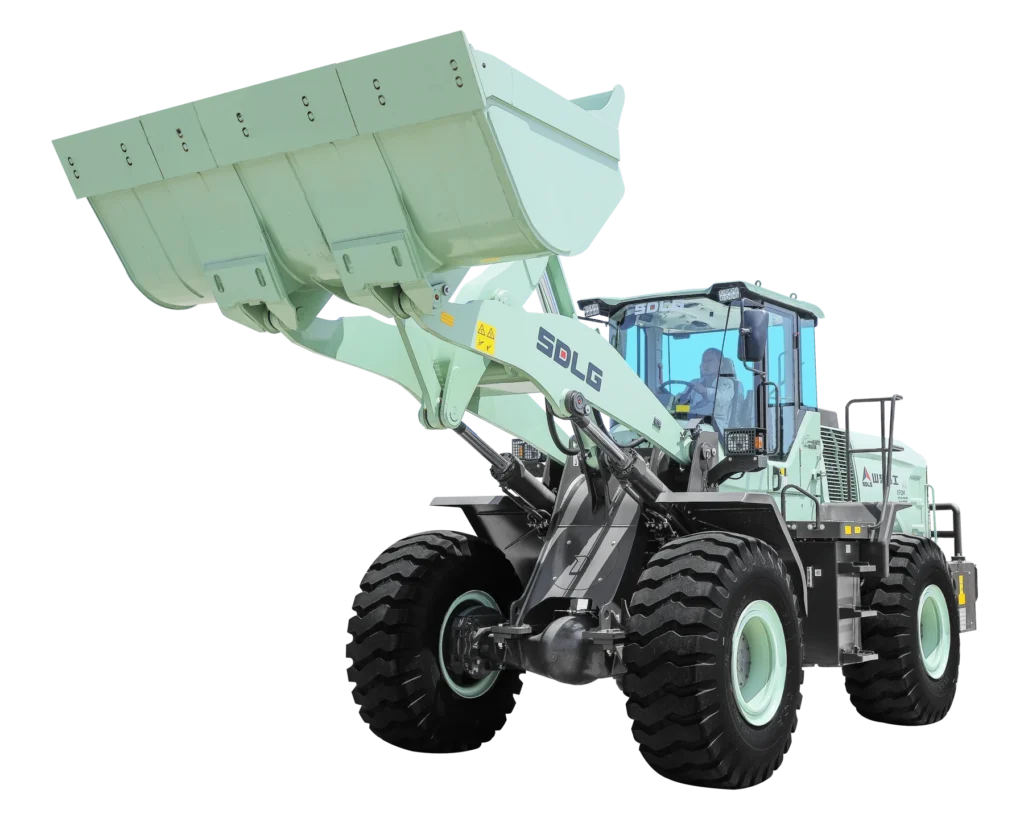

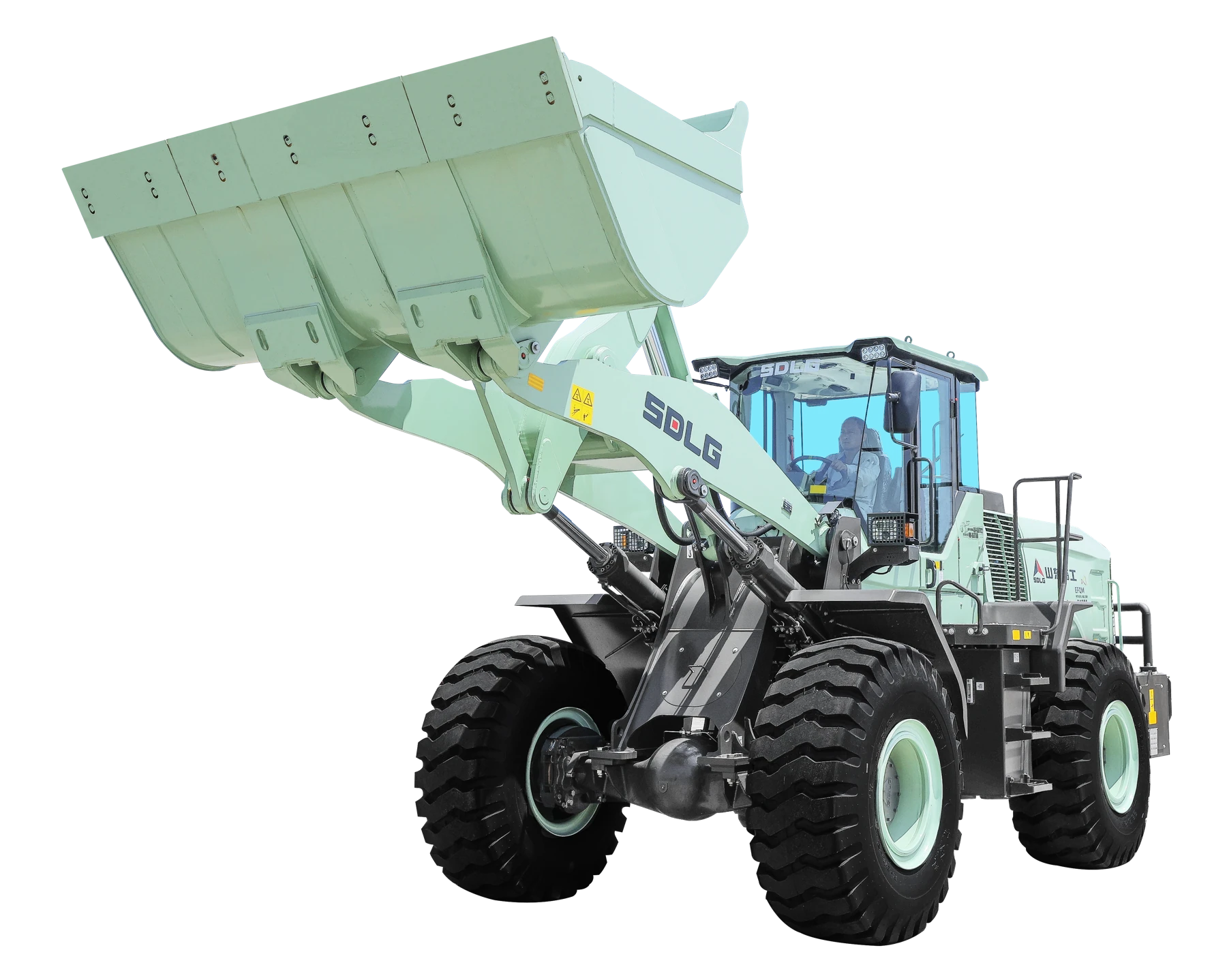

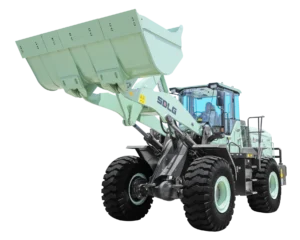

SDLG L956HEV Electric Wheel Loader, product view 03

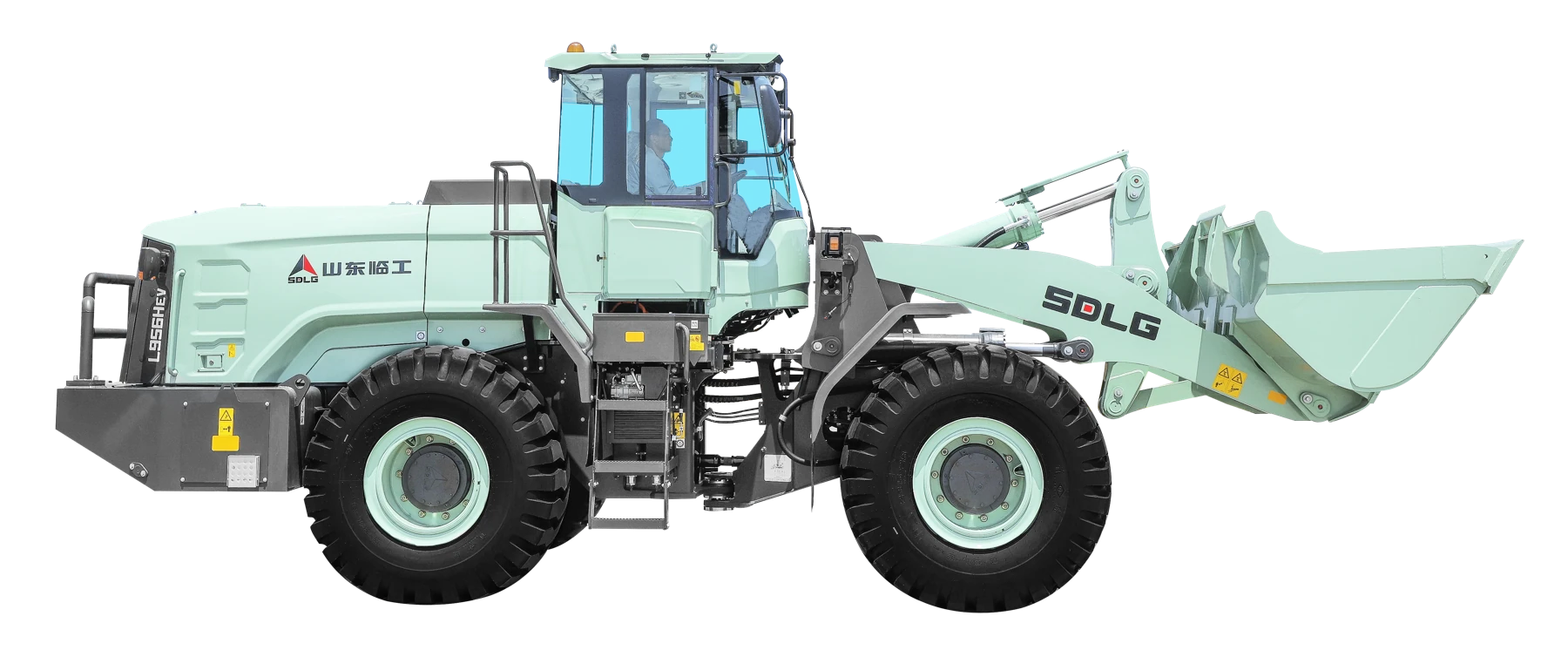

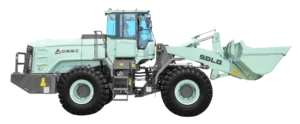

SDLG L956HEV Electric Wheel Loader, product view 04

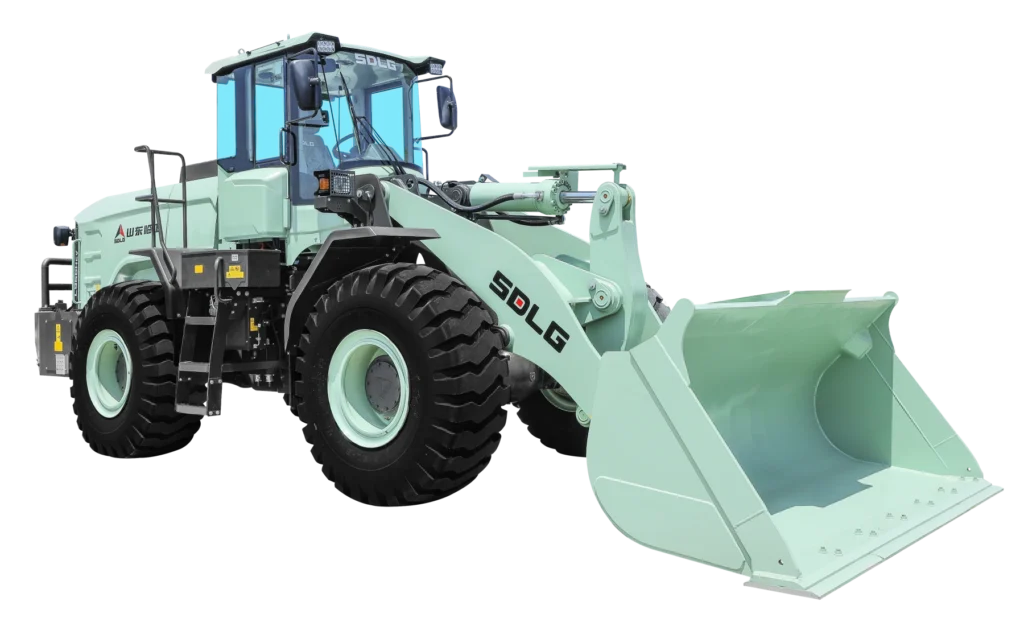

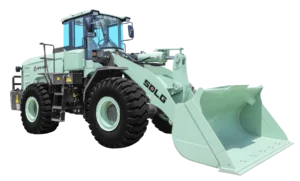

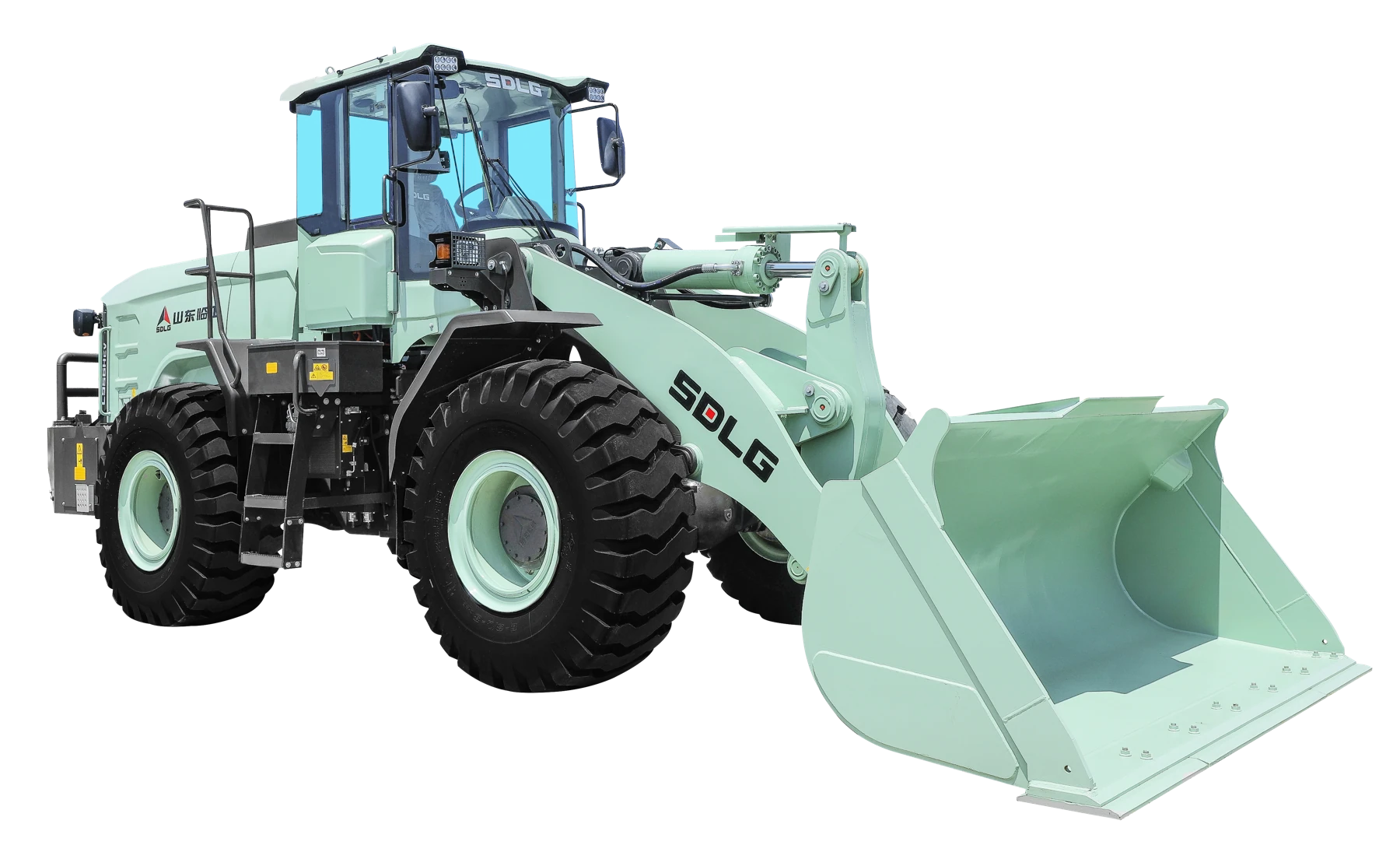

SDLG L956HEV Electric Wheel Loader, product view 05

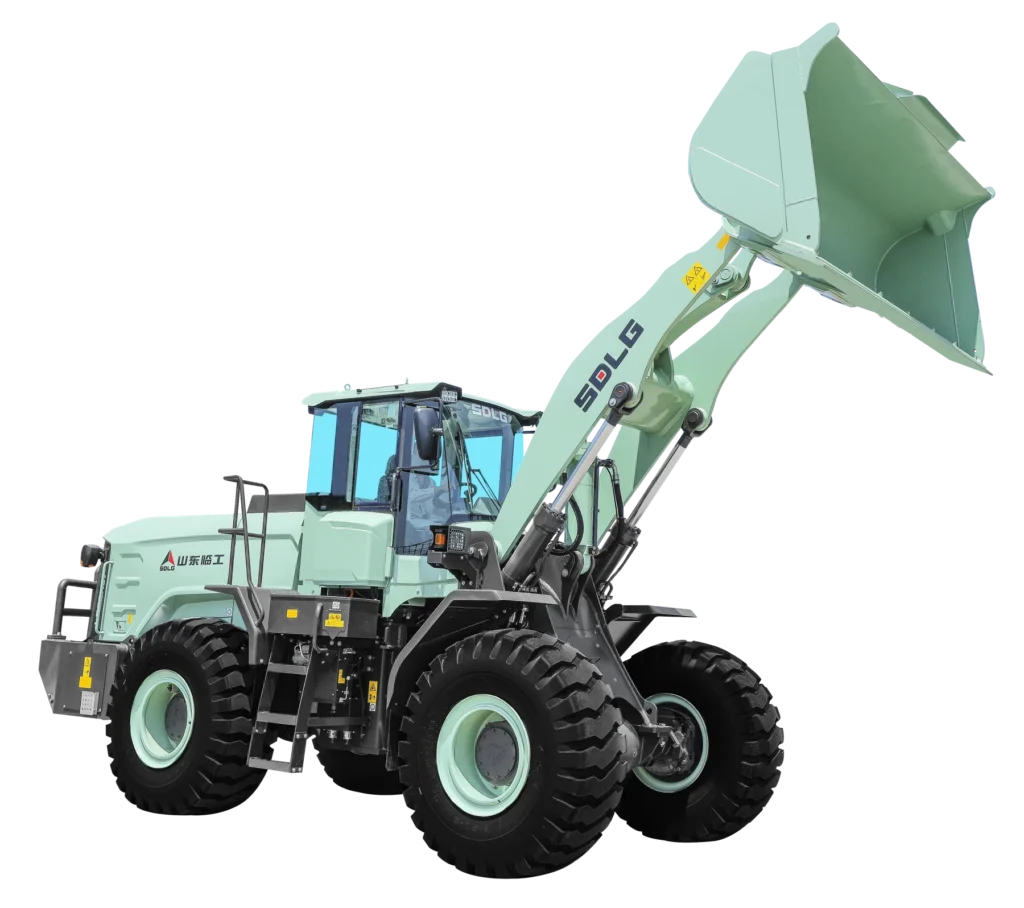

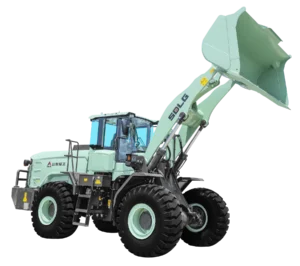

SDLG L956HEV Electric Wheel Loader, product view 06

Electric Wheel Loader

L956HEV

A battery-powered wheel loader for substantial material handling tasks.

Rated load (kg)5800

Bucket capacity range (m³)2.7~5.0

Operating weight (kg)18700

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A battery-powered wheel loader for substantial material handling tasks.

Lithium iron phosphate battery and protected electrical systems.

High-power electric drive with intelligent operating modes.

Regenerative deceleration and braking.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	18700
Rated load (kg)	5800
Bucket capacity range (m³)	2.7~5.0
Overall length (mm)	9070
Overall width (mm)	3016
Overall height (mm)	3460
Wheelbase / track wheelbase (mm)	3400
Minimum ground clearance (mm)	435 mm
Turning radius (mm)	6360 mm
Breakout force (kN)	≥170 kN
Maximum traction force (kN)	170 kN
Dumping height at 45° (mm)	3380mm
Dumping reach at 45° (mm)	1280 mm
Lifting time, loaded (s)	≤5.4s
Total cycle time (s)	≤9.6 s
Tyre size	23.5-25
Rated battery energy (kWh)	350.21kWh
Rated battery capacity (Ah)	608
Rated battery voltage (V)	576
Maximum charging power (kW)	240
Battery type	Lithium iron phosphate (LFP)
Charging type	DC
Total rated motor power (kW)	205
Total peak motor power (kW)	400
Travel motor rated power (kW)	125
Working motor rated power (kW)	80

Specifications shown for configuration L056HXEL17G29E1. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
