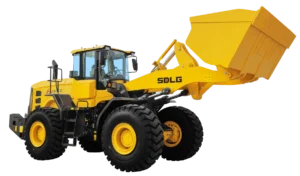

SDLG L968H Wheel Loader, product view 03

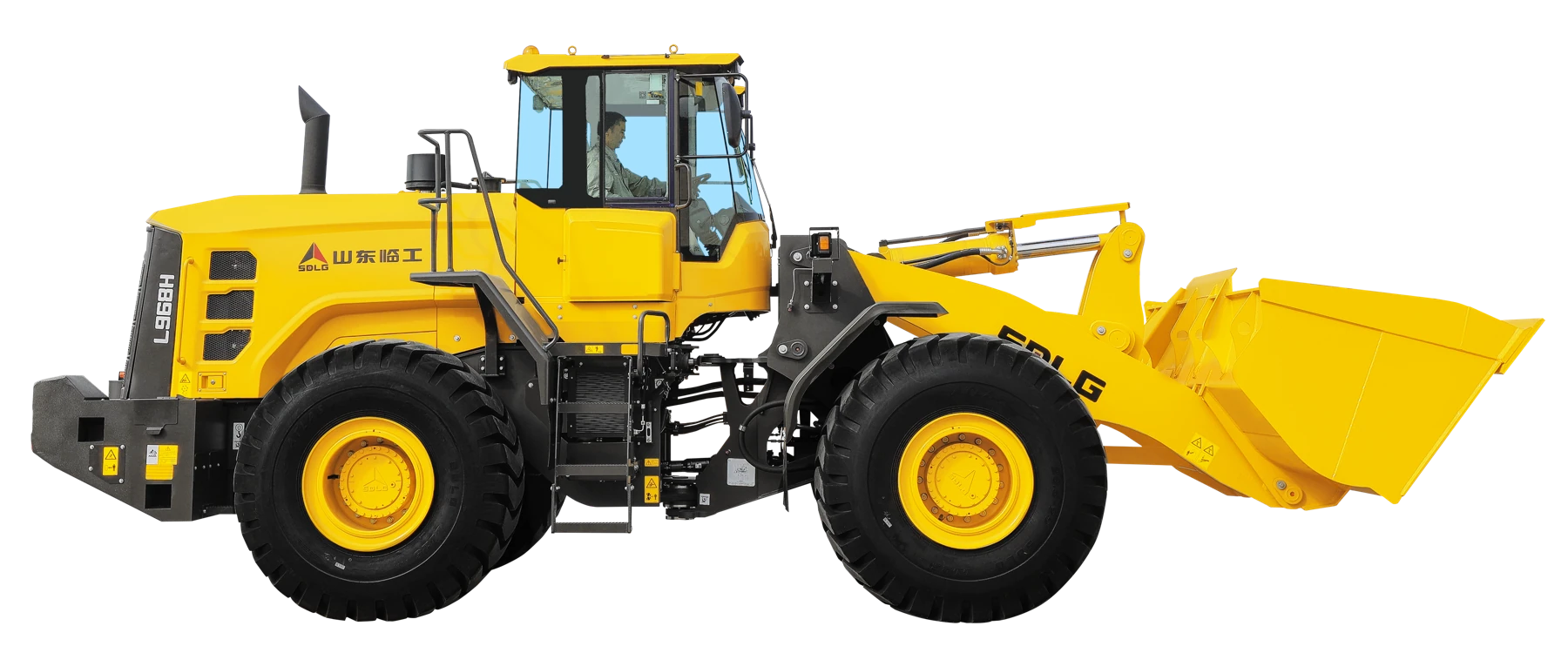

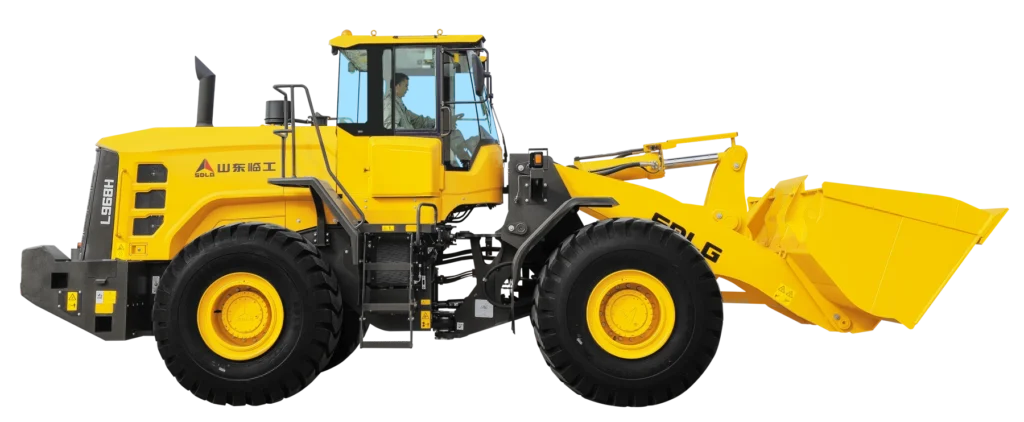

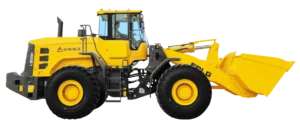

SDLG L968H Wheel Loader, product view 01

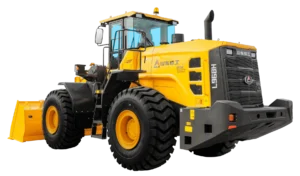

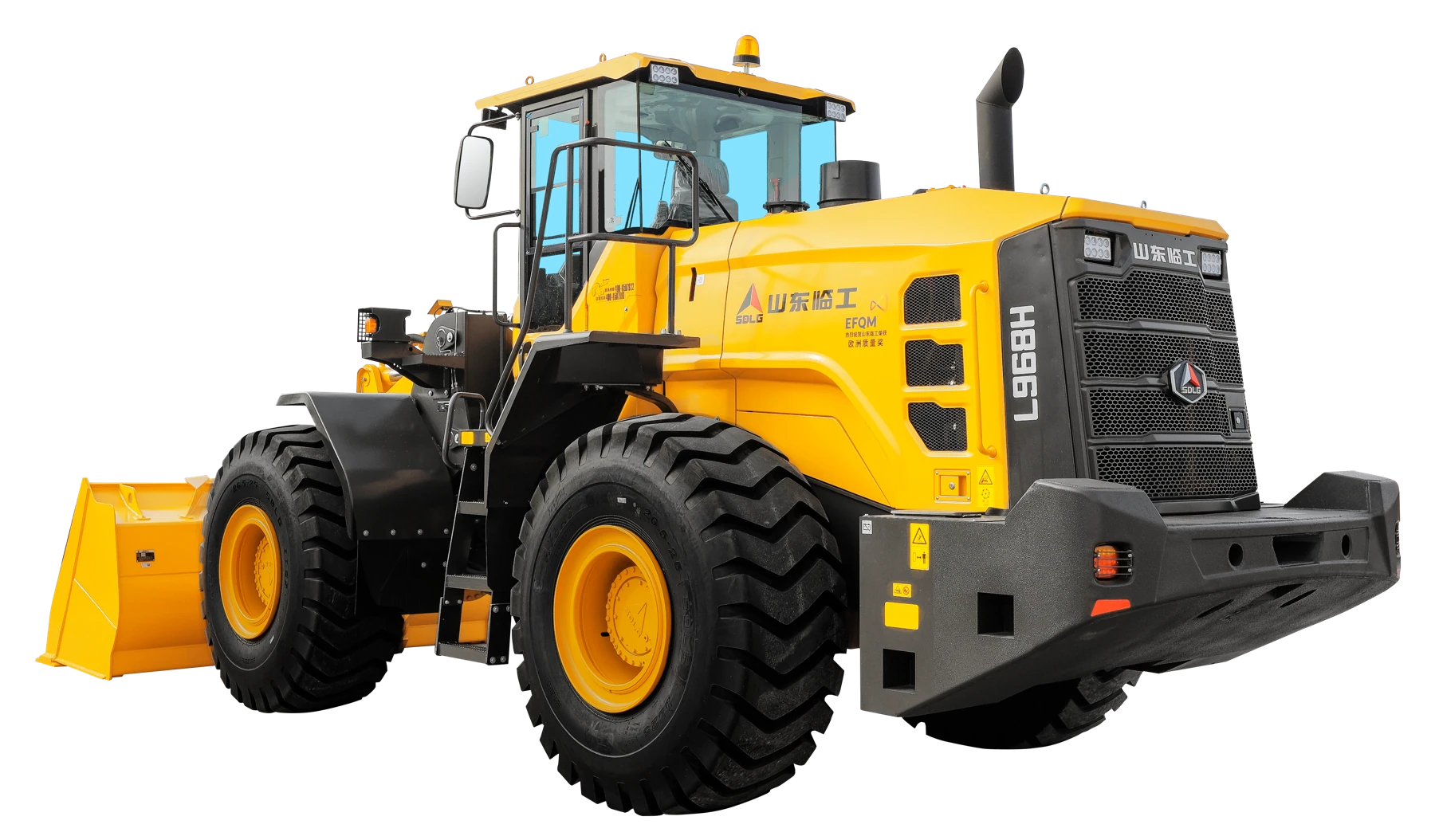

SDLG L968H Wheel Loader, product view 02

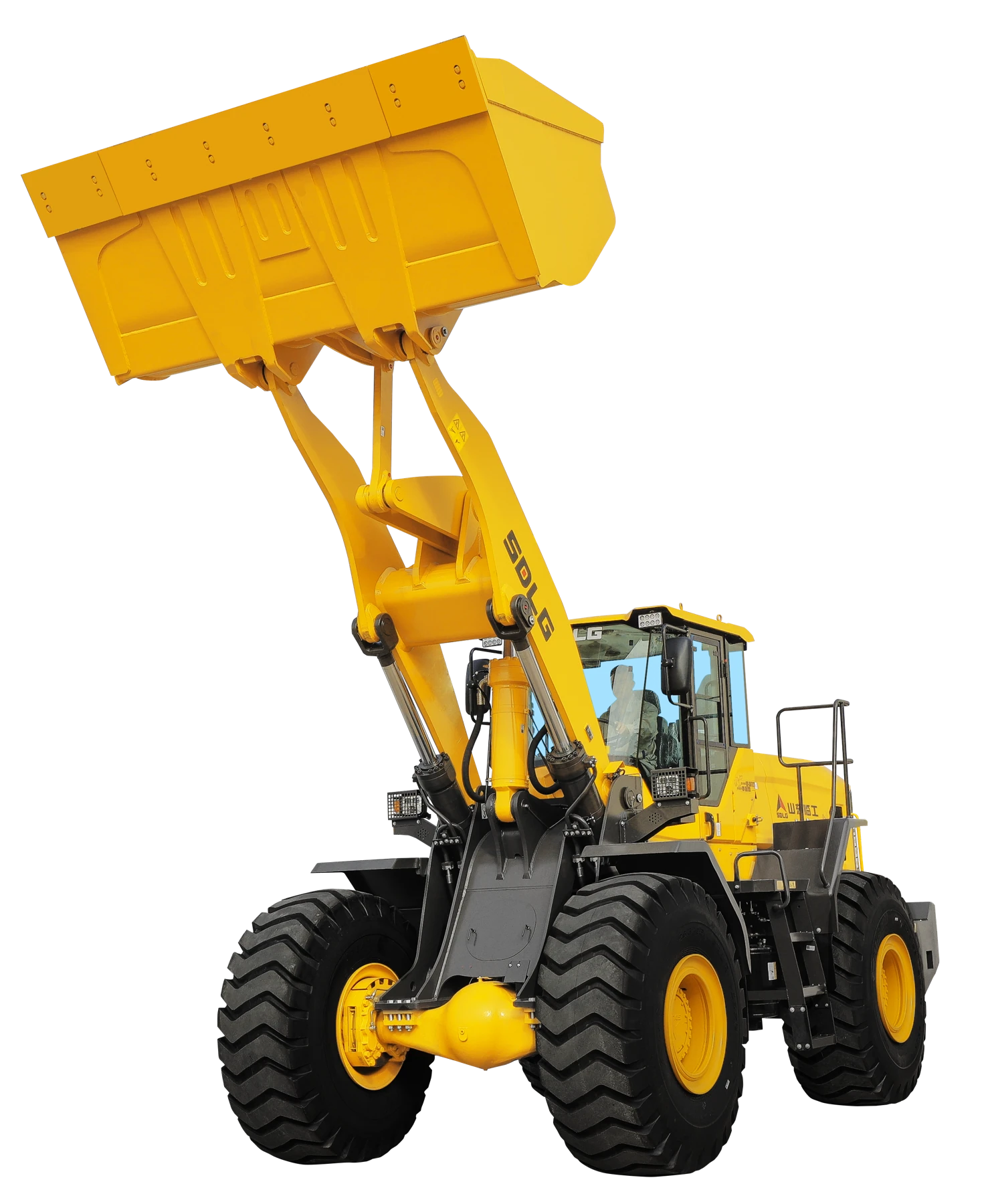

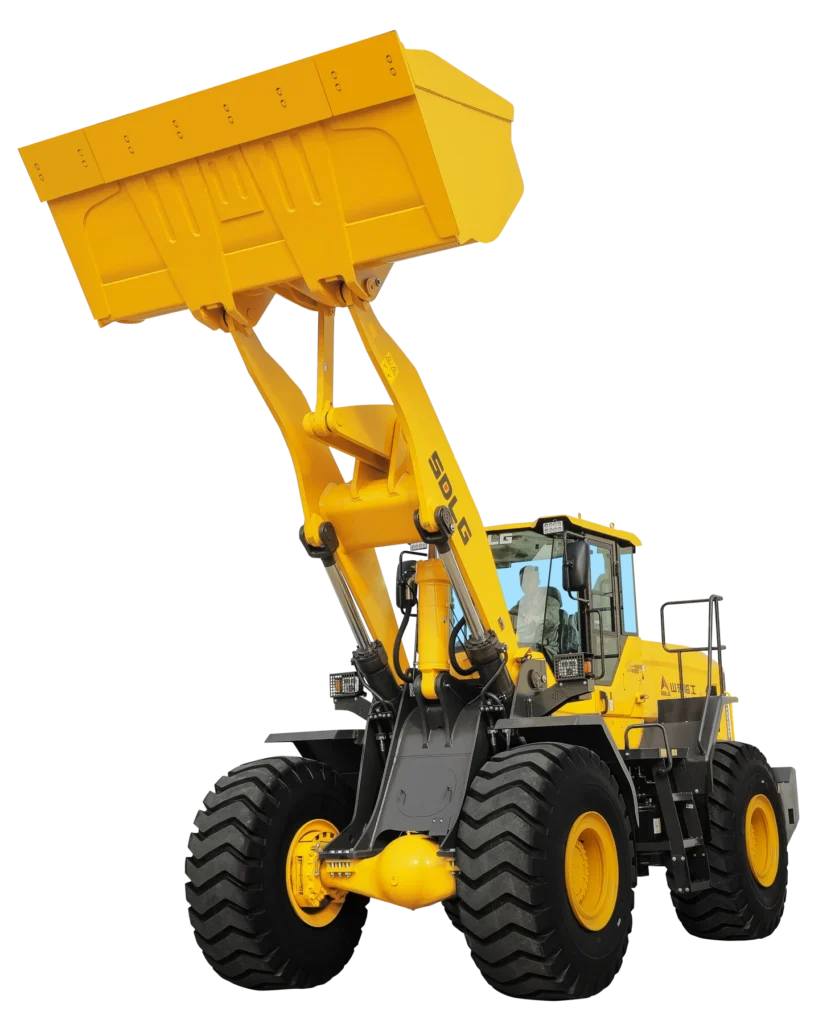

SDLG L968H Wheel Loader, product view 04

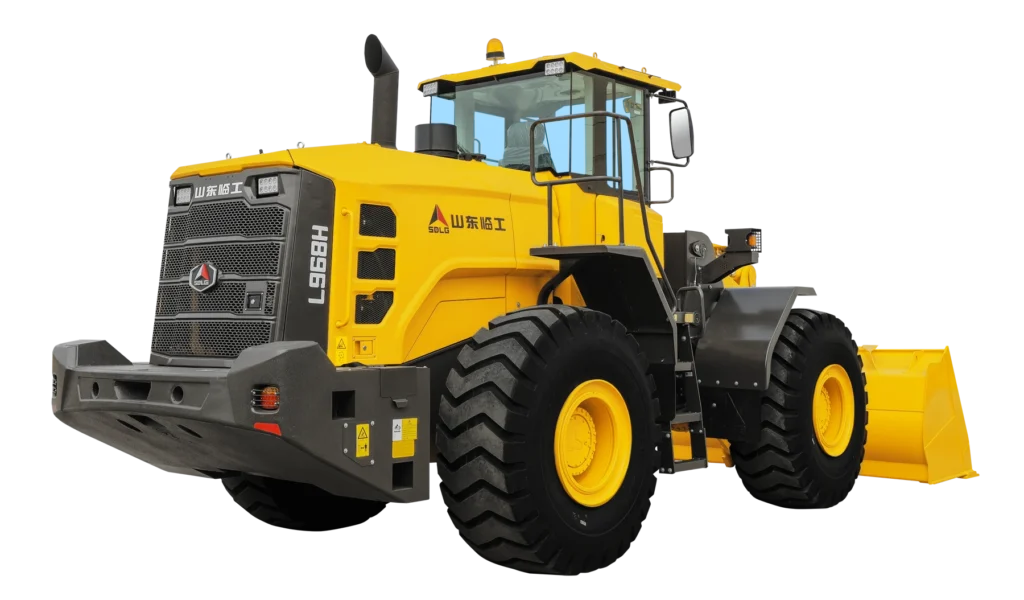

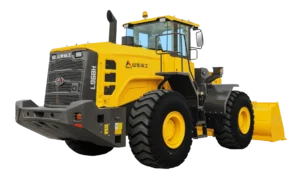

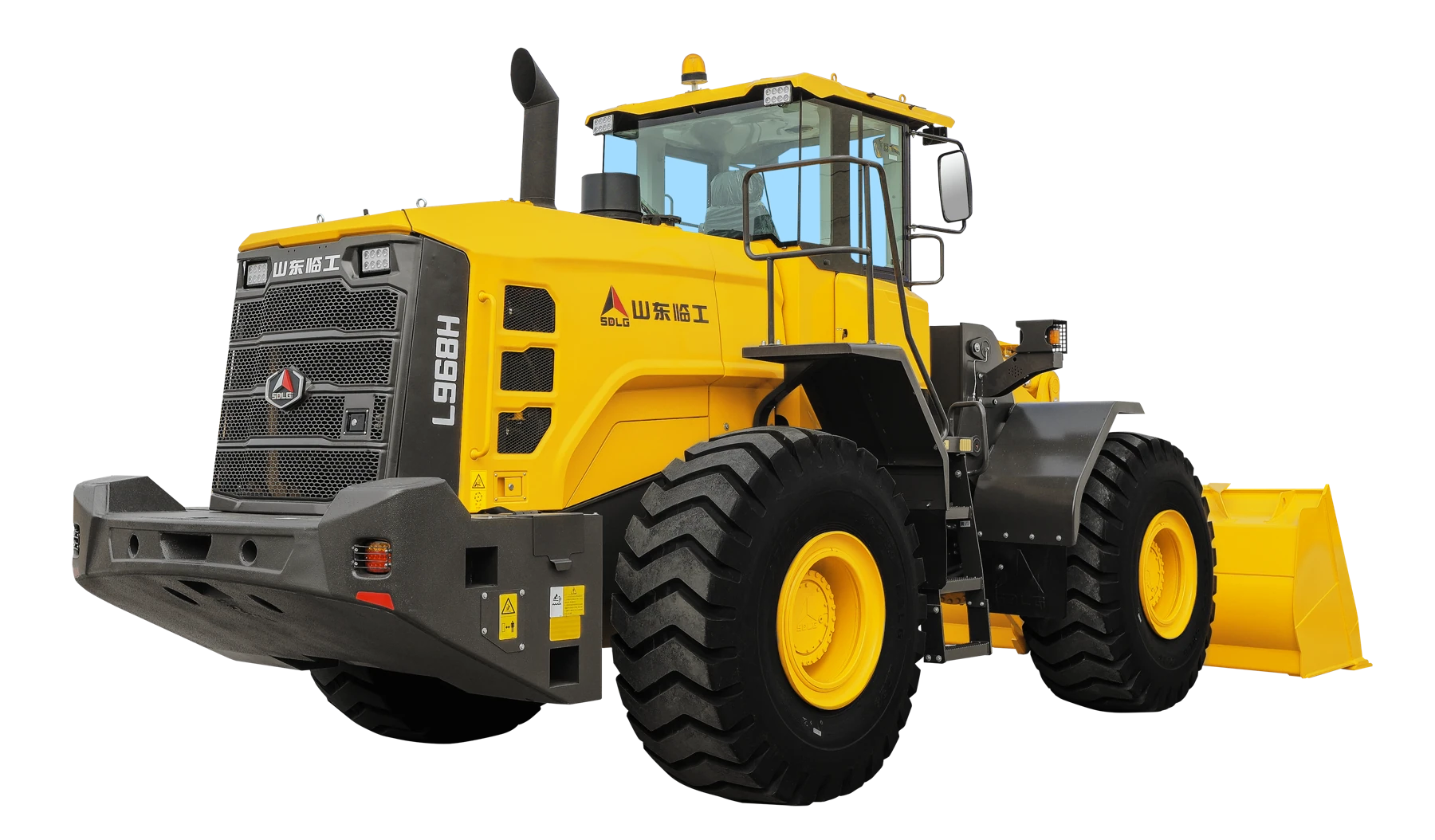

SDLG L968H Wheel Loader, product view 05

Wheel Loader

L968H

A long-wheelbase loader for demanding handling of ore, powder and large stone in mines, ports, steel facilities and construction projects.

Rated load (kg)6300

Engine power (kW)178

Bucket capacity range (m³)3.0–6.0

Operating weight (kg)20850

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A long-wheelbase loader for demanding handling of ore, powder and large stone in mines, ports, steel facilities and construction projects.

6,300 kg rated load in the supplied configuration.

178 kW engine and a 3,500 mm wheelbase.

Strong traction, breakout and lifting performance.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	20850
Rated load (kg)	6300
Bucket capacity range (m³)	3.0–6.0
Engine model	WP10G240E342
Engine power (kW)	178
Rated engine speed (rpm)	2100 r/min
Overall length (mm)	8870
Overall width (mm)	3200
Overall height (mm)	3510
Wheelbase / track wheelbase (mm)	3500
Minimum ground clearance (mm)	530 mm
Turning radius (mm)	6210 mm
Breakout force (kN)	≥215 kN
Maximum traction force (kN)	180 kN
Dumping height at 45° (mm)	3170mm
Dumping reach at 45° (mm)	1230 mm
Lifting time, loaded (s)	≤5.2 s
Total cycle time (s)	≤9.5 s
Tyre size	26.5-25
Engine displacement (ml)	9726
Emission standard, specified configuration	GB 20891-2014(China III)

Specifications shown for configuration L068HW3115A29E0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
