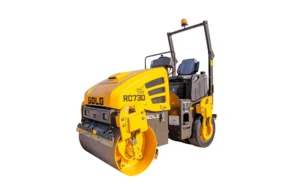

SDLG RC730 Combination Road Roller, product view 02

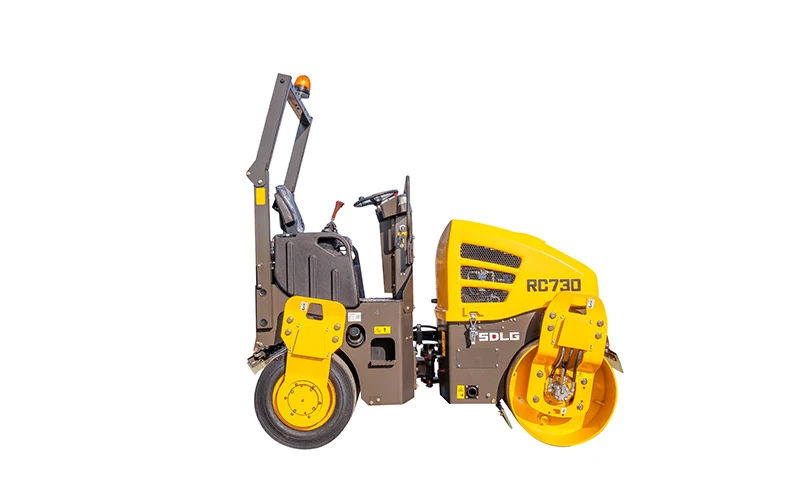

SDLG RC730 Combination Road Roller, product view 01

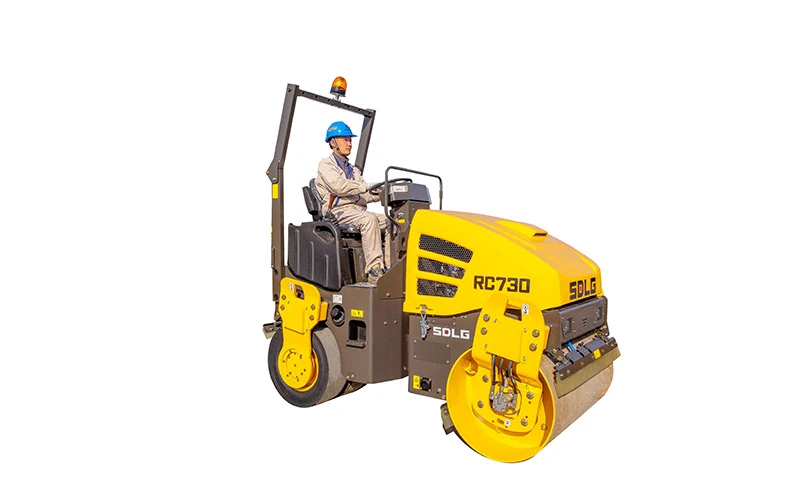

SDLG RC730 Combination Road Roller, product view 03

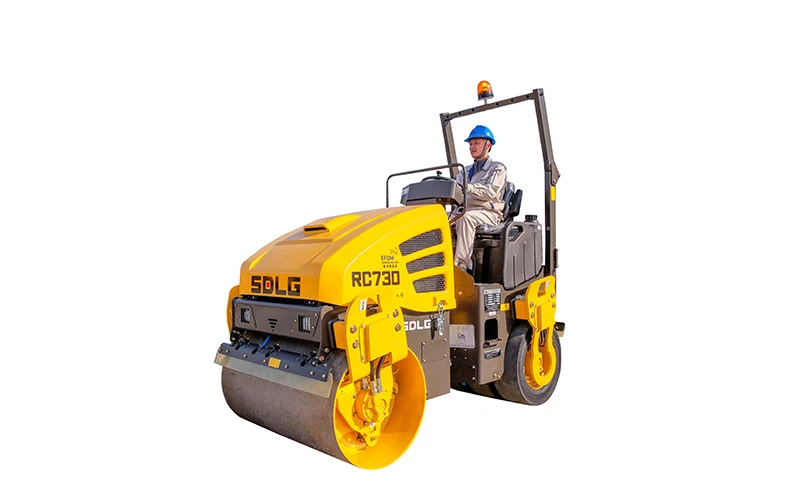

SDLG RC730 Combination Road Roller, product view 04

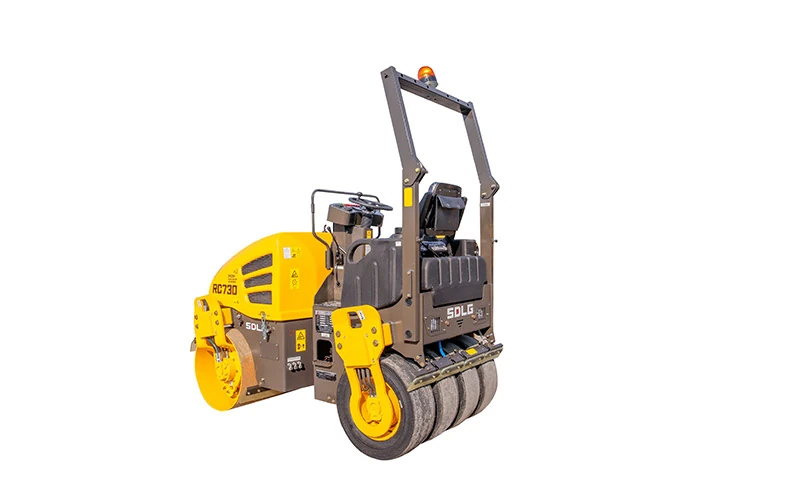

SDLG RC730 Combination Road Roller, product view 05

Combination Road Roller

RC730

A compact combination roller with a front vibrating drum and rear rubber tyres for road and municipal maintenance.

Engine power (kW)24.4

Operating weight (kg)3000

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A compact combination roller with a front vibrating drum and rear rubber tyres for road and municipal maintenance.

Kubota engine with hydraulic drive.

Dual-frequency front-drum vibration.

Rear rubber tyres provide static compaction.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	3000
Engine model	D1803-M-DI-ET05
Engine power (kW)	24.4
Rated engine speed (rpm)	2400
Overall length (mm)	2424
Overall width (mm)	1337
Overall height (mm)	2678
Wheelbase / track wheelbase (mm)	1728
Minimum ground clearance (mm)	260
Minimum outer turning radius (mm)	3818
Tyre size	9.5/62-15-6PR
Engine displacement (ml)	1826
Emission standard, specified configuration	GB 20891-2014(China III)
Working width (mm)	1200
Drum width (mm)	1200
Nominal amplitude (mm)	0.5
Vibration frequency (Hz)	55/67
Centrifugal force (kN)	31/46
Maximum gradeability	40%
Static linear load (N/cm)	120/-

Specifications shown for configuration R0300K3411603A0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
