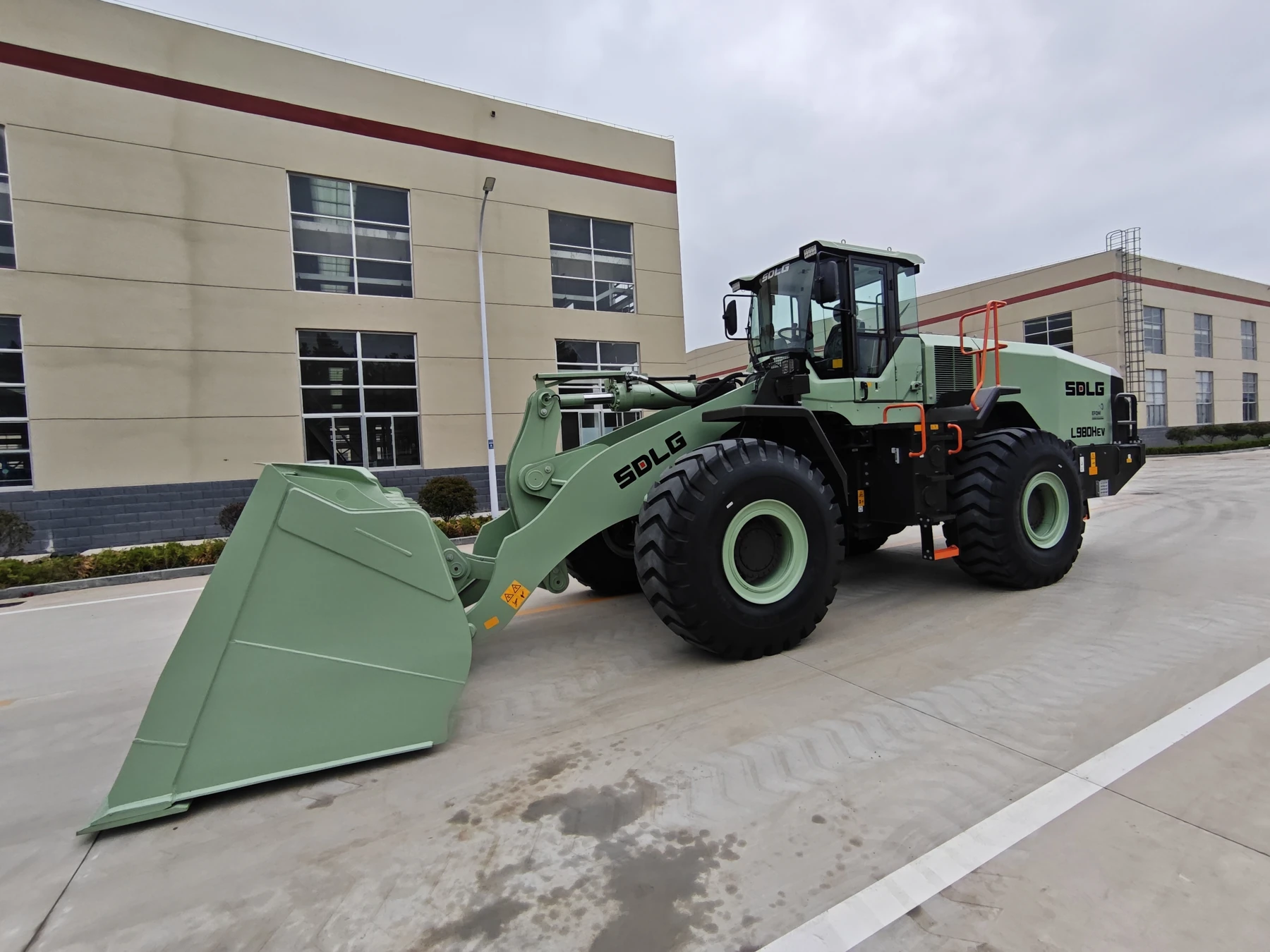

SDLG L980HEV Electric Wheel Loader, product view 09

SDLG L980HEV Electric Wheel Loader, product view 02

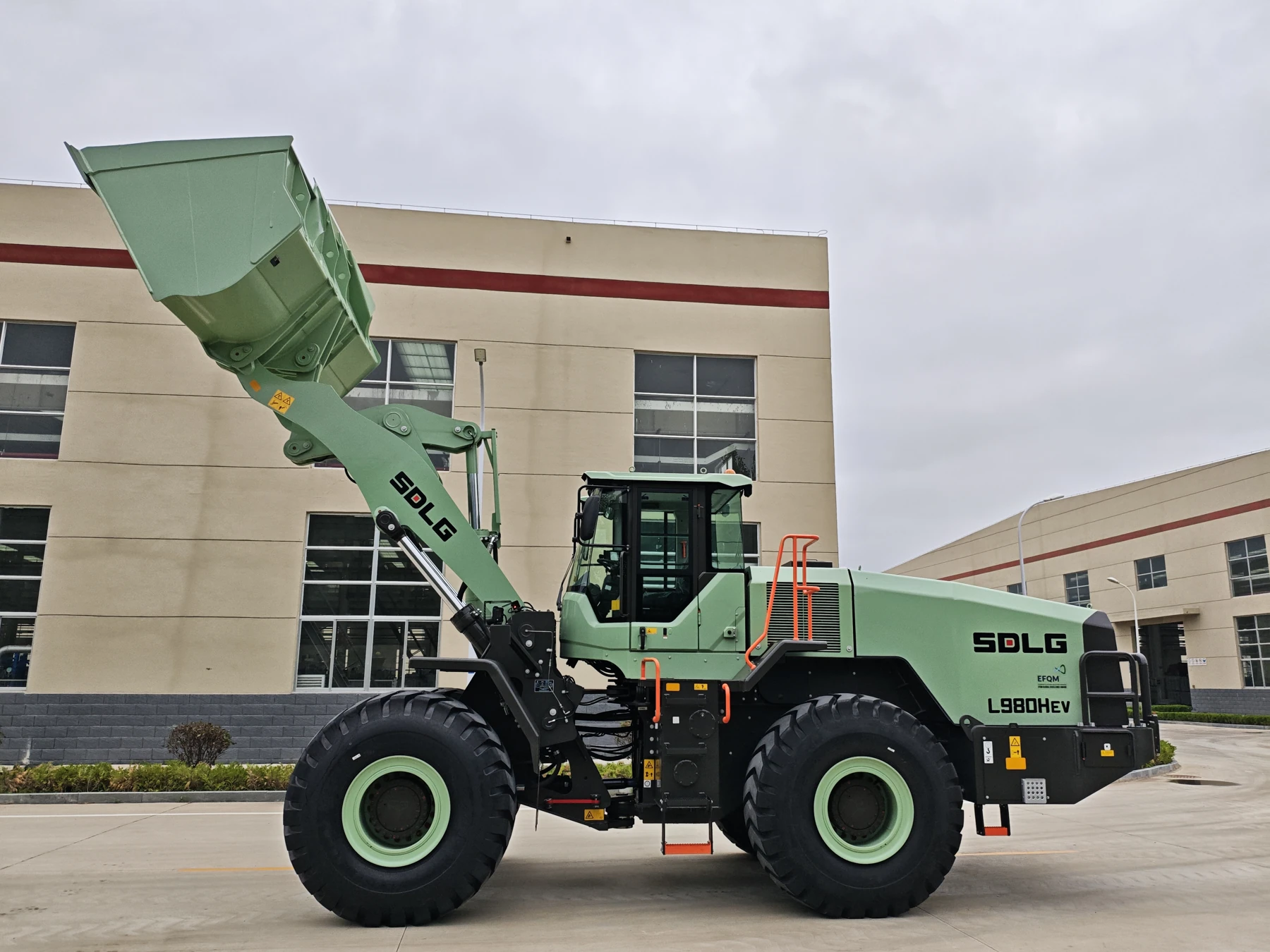

SDLG L980HEV Electric Wheel Loader, product view 03

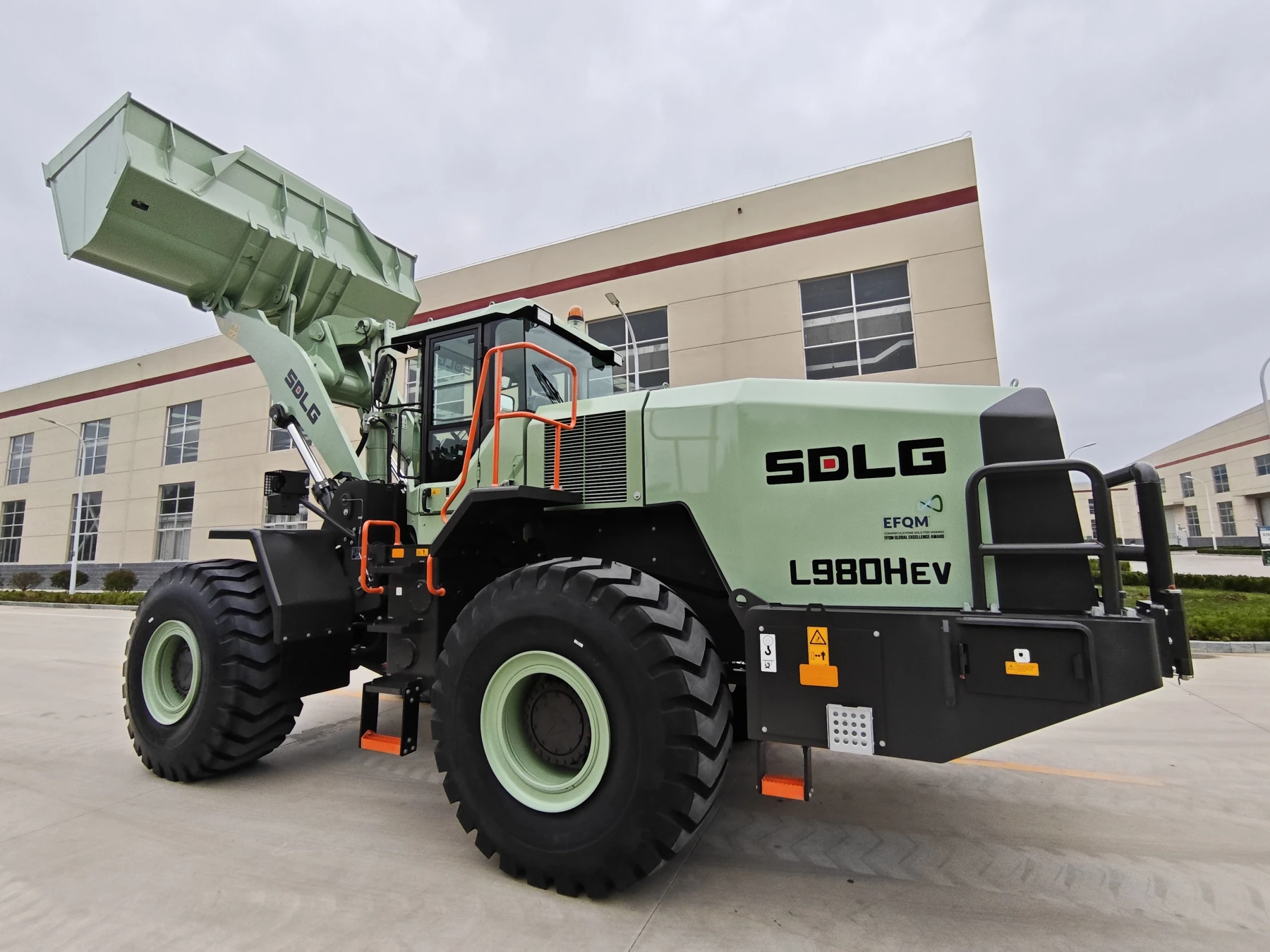

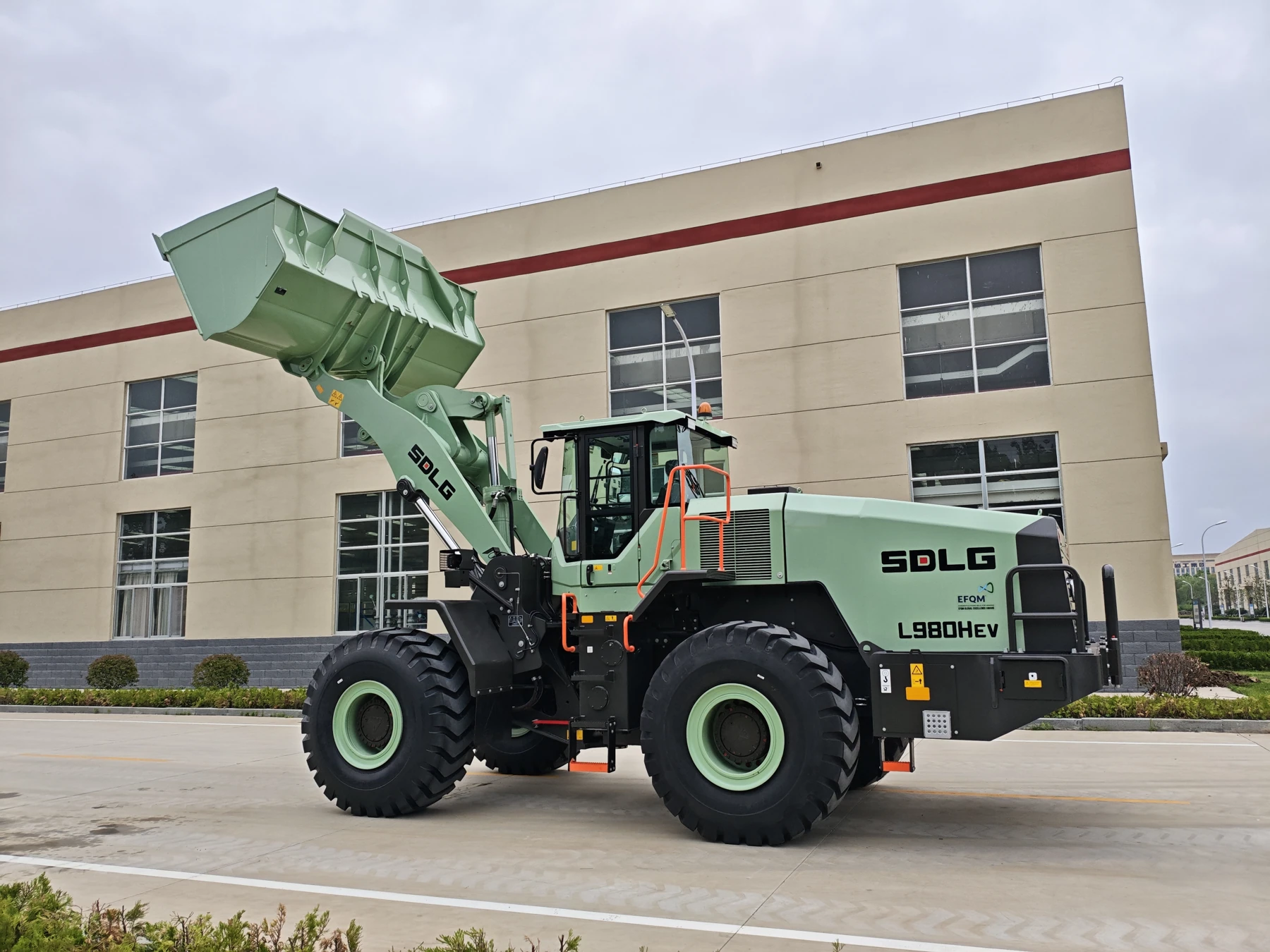

SDLG L980HEV Electric Wheel Loader, product view 04

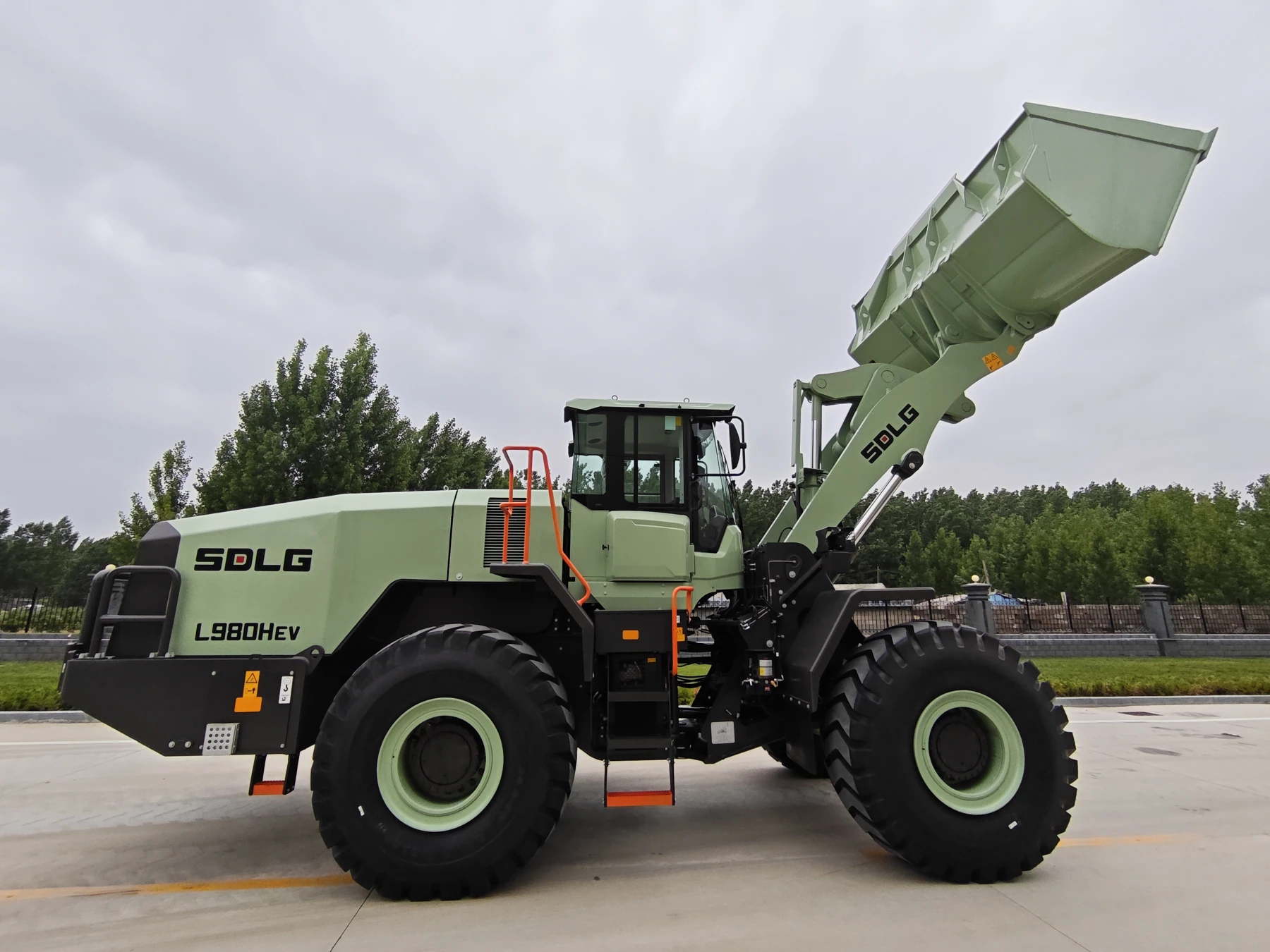

SDLG L980HEV Electric Wheel Loader, product view 05

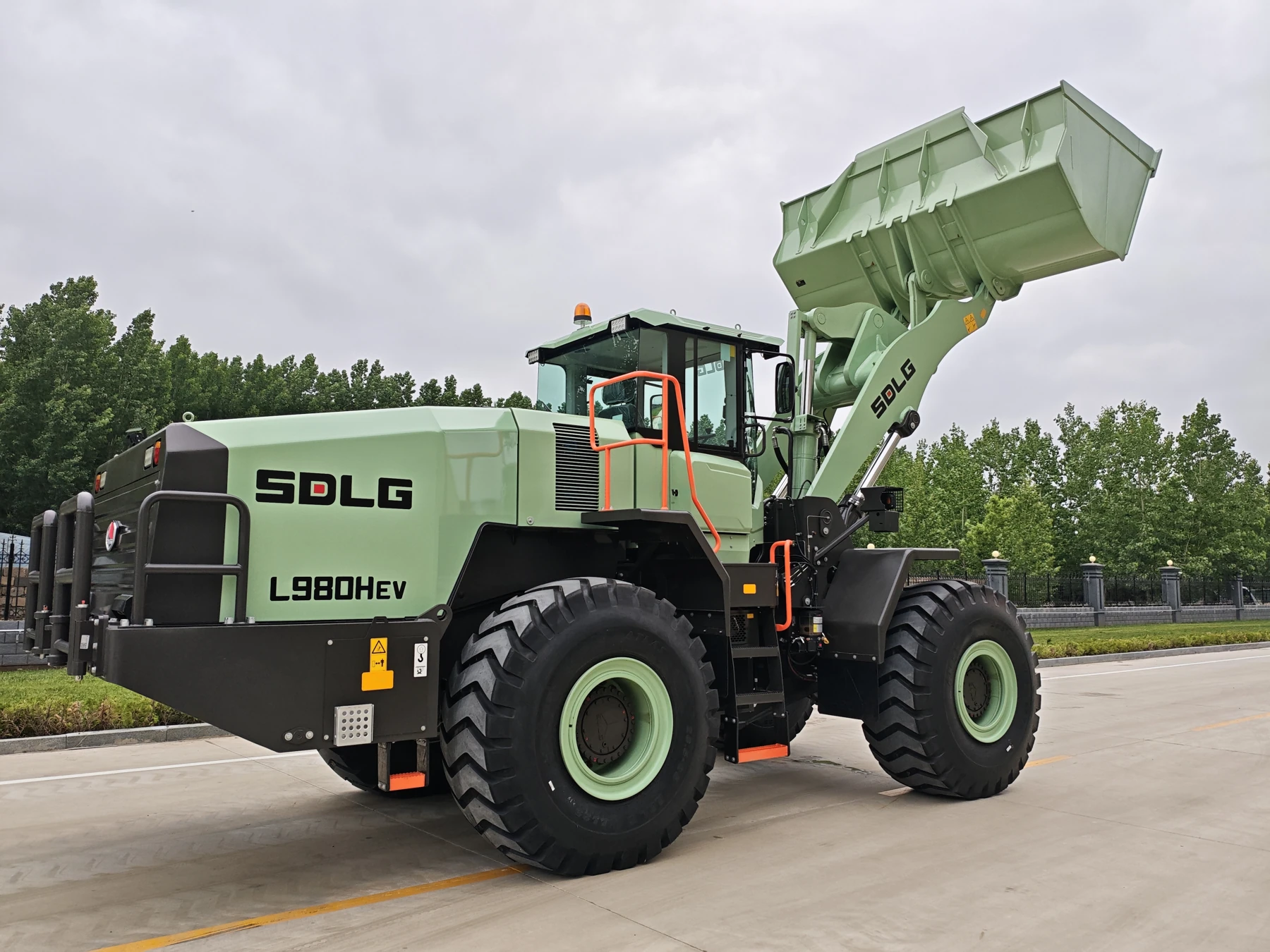

SDLG L980HEV Electric Wheel Loader, product view 06

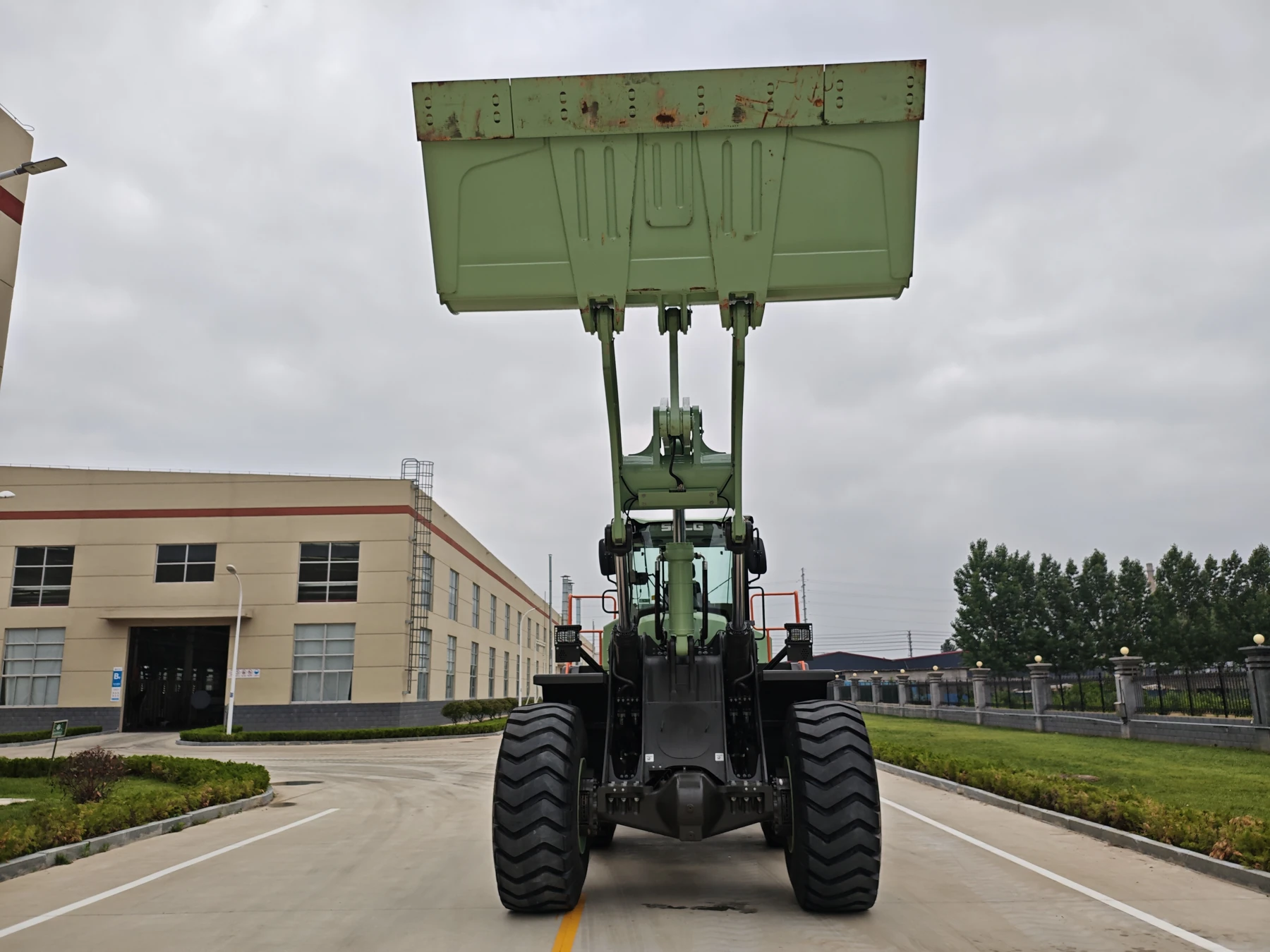

SDLG L980HEV Electric Wheel Loader, product view 07

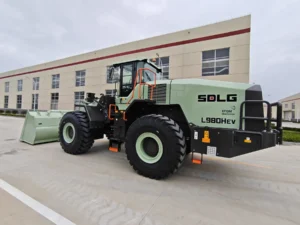

SDLG L980HEV Electric Wheel Loader, product view 08

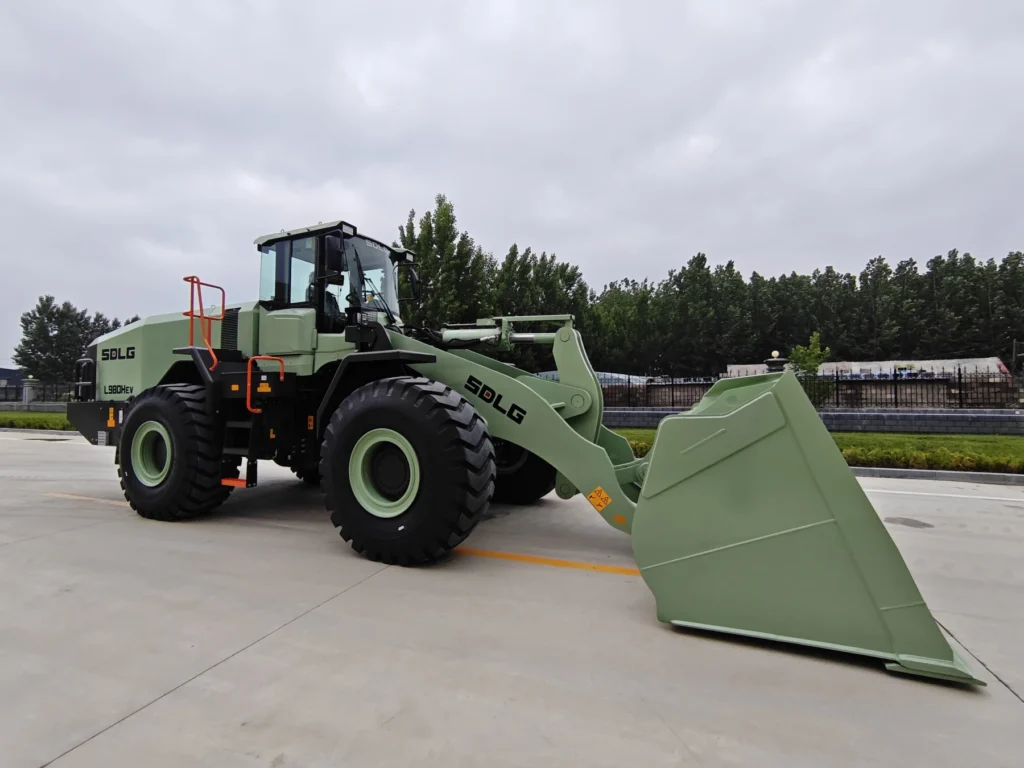

SDLG L980HEV Electric Wheel Loader, product view 10

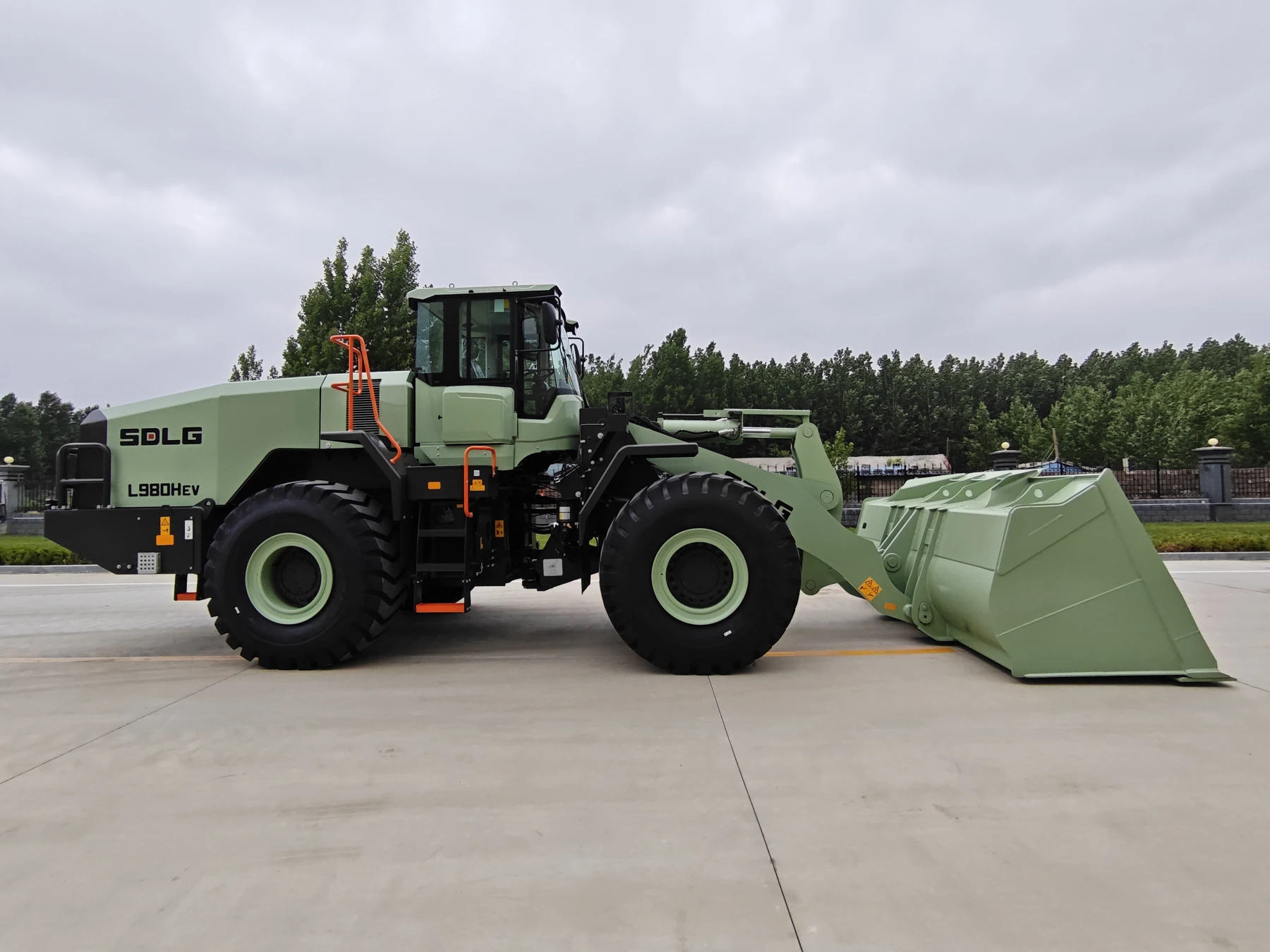

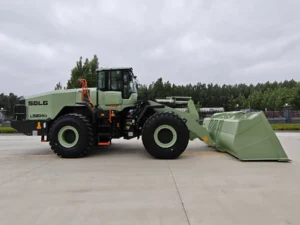

SDLG L980HEV Electric Wheel Loader, product view 11

SDLG L980HEV Electric Wheel Loader, product view 12

Electric Wheel Loader

L980HEV

A heavy-duty electric wheel loader for material handling with intelligent power and temperature management.

Rated load (kg)8000

Bucket capacity range (m³)3.6–7.0

Operating weight (kg)26600

Request a Quote Talk to Our Team

BUILT FOR A TOUGHER TOMORROW

RELIABLE EQUIPMENT.
PRACTICAL PERFORMANCE.

A heavy-duty electric wheel loader for material handling with intelligent power and temperature management.

Protected lithium iron phosphate battery and reinforced frame.

High-power electric drive and regenerative braking.

Intelligent operating modes and automatic start-stop control.

TECHNICAL SPECIFICATIONS

DETAILED SPECIFICATIONS.

Operating weight (kg)	26600
Rated load (kg)	8000
Bucket capacity range (m³)	3.6–7.0
Overall length (mm)	9630
Overall width (mm)	3600
Overall height (mm)	3620
Wheelbase / track wheelbase (mm)	3550
Minimum ground clearance (mm)	506 mm
Turning radius (mm)	6375 mm
Breakout force (kN)	≥205 kN
Maximum traction force (kN)	226 kN
Dumping height at 45° (mm)	3650 mm
Dumping reach at 45° (mm)	1295 mm
Lifting time, loaded (s)	≤5.2 s
Total cycle time (s)	≤10.1 s
Tyre size	26.5-25
Rated battery energy (kWh)	423.93kWh
Rated battery capacity (Ah)	690
Rated battery voltage (V)	614.4
Maximum charging power (kW)	240
Battery type	Lithium iron phosphate (LFP)
Charging type	DC
Total rated motor power (kW)	297.1
Total peak motor power (kW)	540
Travel motor rated power (kW)	70*2
Working motor rated power (kW)	106

Specifications shown for configuration L080HXEL18G29E0. Available configurations may differ. Confirm the required configuration with PT.SFJX before ordering.
